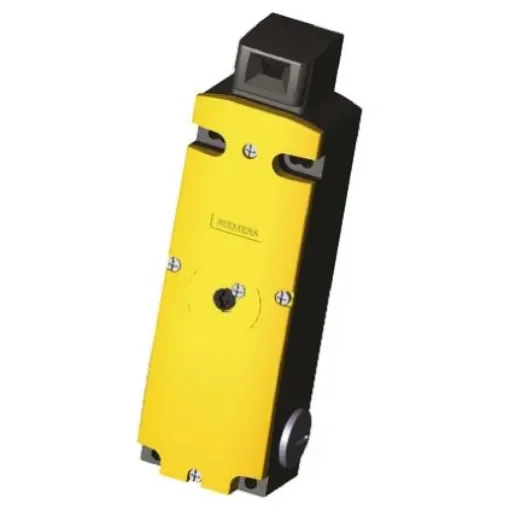

Siemens 3SE5 Series Solenoid Interlock Switch, Power to Unlock, 230V ac - 3SE5312-0SD13

Power to Lock / Unlock = Power to Unlock
Supply Voltage = 230V ac
Series = 3SE5
Actuator Included = No
Range = SIRIUS
Safety Contacts = 2NC
Conduit Entry = M20
Auxiliary Contacts = 1NO
Housing Material = Metal
IP Rating = IP66, IP67
Length = 184.1mm

Siemens Solenoid Interlock SwitchThe Siemens 3SE5 power to unlock solenoid interlock switch has a supply voltage rating of 230VAC. It has 2NC safety and 1NO auxiliary contacts. This has a separate actuator and an additional electromagnetic tumbler is designed for protective doors that have to remain closed while a machine is being shut down. An integrated auxiliary magnet in the switch keeps the door locked until a specific signal is received. A safety mechanism to prevent unwanted closing ensures that the NC contacts of the magnet never close even when the door is open. This switch can be released manually using an auxiliary release mechanism if, for example, access is required following a power failure or during installation. Note Actuators must be purchased separately.Features and BenefitsHigher locking forces of 2600N on the metal housing 2 x 3 contact blocks are included as standard, contact are provided for magnet and actuator monitoring Innovative ASIsafe solution with an integrated module Contact monitoring and magnet control draw on =170mA Thermal current is 10A A number of additional release mechanisms to handle any application: auxiliary release mechanism, lock release, escape release and emergency release Actuator heads can be rotated in 4 x 90° increments 5 directions of approach (4 x lateral + 1 x front) LED status display Cable entry type is 3 x (M20 x 1.5)CertificationsIP66 rated IP67 rated CCC certified CSA certified EAC certified CE certified UL approved SIL 3 IEC 62061 IEC 60068-2-27
