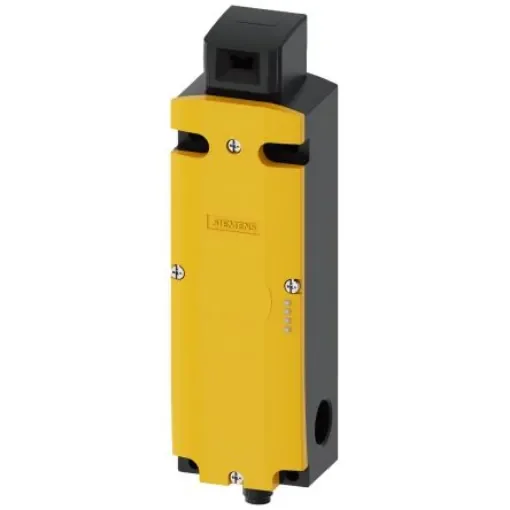

Siemens 3SE5 Series Solenoid Interlock Switch, 2NC/1NO - 3SF1324-1SB21-1BA3
Ensure safety with the Siemens 3SE5 Solenoid Interlock Switch, designed for reliable position monitoring.
Manufacturer part number: 3SF1324-1SB21-1BA3
GTIN: 4011209778276
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Series = 3SE5
Range = SIRIUS
Normal State Configuration = 2NC/1NO
The Siemens Safety position switch with tumbler Locking force 1300 N 5 directions of approaches Plastic enclosure, M12 connector ASIsafe integrated Channel 1=to 1 NC from actuator Channel 2=to 1 NC from actuator Solenoid-locked Magnet voltage 24 V DC/AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO The matching separate Actuator 3SE5000-0AV0 must be ordered separately Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-interface bus system. Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. 3D-coded actuators guarantee strong protection against manipulation.special design of housing 5 directions of approach
