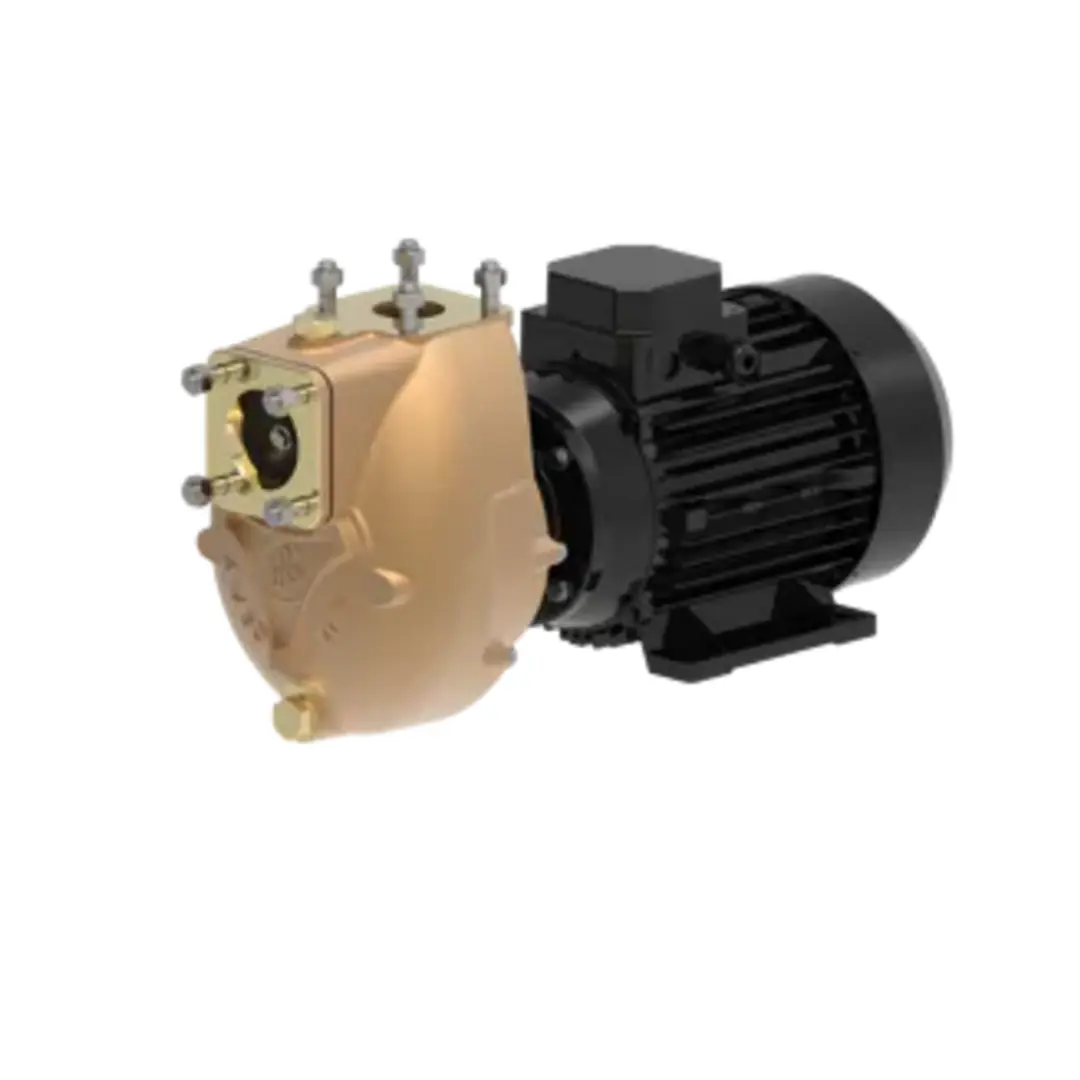

self-priming pump AM50D5EM2T50 cod.90-93000302
The AM50D5EM2T50 is a self-priming centrifugal pump designed for various applications, particularly in maritime and industrial settings. Its self-priming capability allows it to evacuate air from the suction line, enabling efficient operation even when the pump is situated above the liquid source.
MICHAEL SMITH ENGINEERS
Key Applications:
- Bilge Deckwash: Effectively removes water that accumulates in the bilge of ships, ensuring vessel safety and stability.
- Fire Prevention: Provides a reliable water supply for firefighting systems, crucial for safety in both marine and industrial environments.
- Ballast Operations: Assists in managing a ship's stability by transferring water to and from ballast tanks.
- Conditioning Units: Supports various conditioning processes, potentially including water circulation and temperature regulation.
Technical Specifications:
- Material Construction: The pump casing and impeller are made of bronze, offering corrosion resistance, while the bearing housing is constructed from grey cast iron.
- Mechanical Seal: Features a carbon/ceramic/NBR mechanical seal, ensuring durability and leak prevention.
- Performance: Capable of delivering flow rates up to 48 m³/hour (176 gallons/minute) at a 15-meter head when operating at 3000 rpm. The maximum recommended total head is 37 meters.
