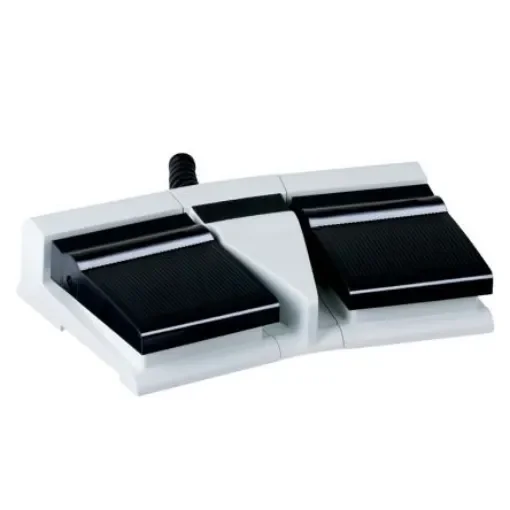

Schmersal General Purpose Momentary Foot Switch - Thermoplastic Case Material, SPST, 1 A, 2.5 A Contact Current, 230V - 103003078
Reliable momentary foot switch with thermoplastic casing for general purpose use.
Manufacturer part number: 103003078
Contact Configuration = SPST
Switch Operation = Momentary
Case Material = Thermoplastic
Contact Voltage Rating AC = 230V
Contact Voltage Rating DC = 24V
Contact Current Rating = 1 A, 2.5 A
Switch Environment = General Purpose
IP Rating = IP67
The Schmersal NKF2-10/10Z-B-2M foot switch has a single contact with single pedal type design with 2m pre-wired cable. It has contact versions consisting of switch-over or NO contacts. The enclosure material is shock-proof thermoplastic whereas the pedal material is of ABS thermoplastic. The foot switch works on the snap switch element switching principle.Standards: IEC/EN 60947-5-1 Mechanical life, minimum: 1,000,000 Operations Protection class: IP 67 to IEC/EN 60529
