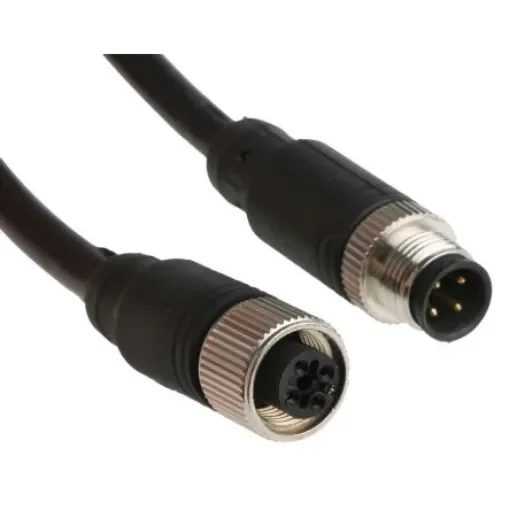

RS PRO Straight Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 2m - 8771097

Cross Sectional Area = 0.75 mm²
Sheath Colour = Blackm
Connector 1 Gender = Female
Connector 2 = M12
Shielded/Unshielded = Unshielded
Current Rating = 4 A
IP Rating = IP67
Maximum Operating Temperature = +75°C

RS PRO Straight M12 to Straight M12 Cable assembly, 4 Core 2 m CableThis 4-core cable assembly from RS PRO provides two straight M12 connectors for a secure connection and reliable data transfer. This makes it useful for sensor and automation applications in industrial environments. This product uses a neoprene O-ring for a tight, liquid-proof seal. Its brass nickel-plated coupling nut is resistant to corrosion and vibration, and its polyurethane (PUR) sheath means its protected from industrial chemicals. Part of the RS PRO range, this two-metre cable assembly has been tested for safety and quality. With an insulation resistance of >= 100 MO, it meets standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic discharge safety. Its IP67 rating means its dust-proof and safe in one metre of water for up to half an hour. Its suitable for use at temperatures ranging from -25°C to +75°C. This cable assembly is useful for applications including process control and commercial electronics.Features and Benefits• Straight M12 connectors for a tight connection • One female socket connector and one male plug connector • Insulation resistance of >=100 MO for protection against electrostatic discharge • Neoprene O-ring for a liquid-proof seal • Brass nickel-plated coupling nut and gold-plated contacts for corrosion resistance • 4-core cable • Length of 2 m • Outer diameter of 5.4 mm • Cross-sectional area of 0.75 mm² • AWG rating of 19 • Unshielded cable • Minimum operating temperature of -25°C • Maximum operating temperature of +75°C • Voltage rating of 250 V • IP67 waterproof rating in up to 1 m of water for 30 mins • Current rating of 4 ARS PRORS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
