RS PRO Straight, Cable Mount, Female to Male- Single Port Type A to A 2.0 USB Connector - 1883482

Gender = Female to Male
USB Type = A to A
USB Version = 2.0
Body Orientation = Straight
Number of Ports = 1
Voltage Rating = 5 V dc
Minimum Operating Temperature = 0.0°C
Maximum Operating Temperature = +60°C

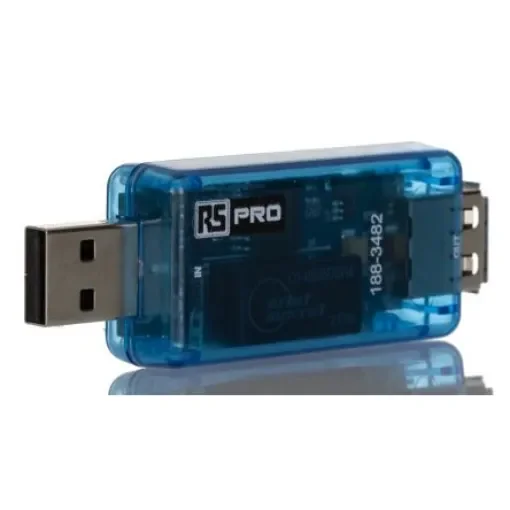

RS PRO USB IsolatorThe RS PRO USB isolator has an input and output connection type of USB 2.0 with the rate of 12Mbaud. The isolator provides galvanic separation from full speed USB bus and thus safely protects the connected device from interference, discharge and overvoltage up to 4kV. It has an operating voltage of 5VDC and operating current of 250mA and the dimensions of the isolator are 50 x 24 x 14 mm (W x H x D). It does not require the installation of any drivers for use.Features and Benefits• Input and output rate of 12Mb • Working temperature ranges between 0°C and 60°C • Storage temperature ranges between -10°C and 85°C • ESD 15kV • Dielectric strength: 4kVAC per 1 min test between input and outputCertifications• CAT III (600V) • UL 94 V-0 Approved
