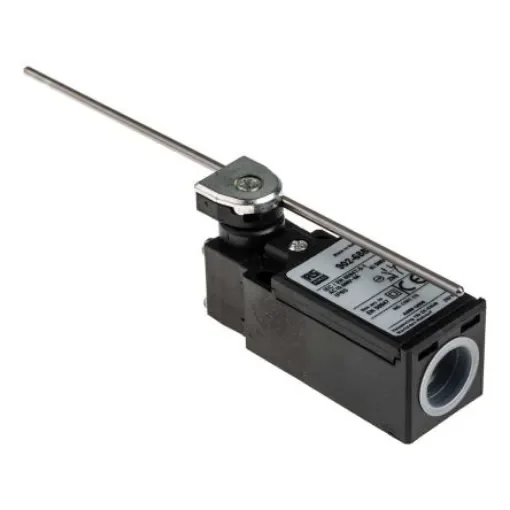

RS PRO Rod Limit Switch, NO/NC, IP65, DPST, Thermoplastic Housing, 400V ac Max, 10A Max - 9026880

Actuator Type = Rod
Pole and Throw Configuration = DPST
Normal State Configuration = NO/NC
IP Rating = IP65
Maximum Current = 10A
Housing Material = Glass Fibre Reinforced Thermoplastic
Maximum AC Voltage = 400V
Maximum DC Voltage = 250V
Connection Type = Cable
Action Type = Snap Action
Length = 30.3mm
Minimum Operating Temperature = -25°C
Mounting Orientation = VerticalOperations

RS PRO Snap Limit Switch - Thermoplastic Fibreglass, NO/NC, Adjustable Lever, 400V, IP65This versatile snap limit switch is commonly used in industrial applications to automatically control mechanical equipment. Its easy to install and boasts a simple, visible operation. It can conveniently start, stop or slow down a device when a specific limit is reached. This could be when a pre-set number of objects is counted, for example, or when a part passes a pre-defined point. This switch can handle currents of up to 10 A. It also features long-lasting, reliable snap action that accurate, repeatable contact closure. Its easy to adjust the rotary lever actuator, which is useful when youre not sure what arm length is needed. Made from UL-VO (flame-retardant) thermoplastic fibreglass, this limit switch is doubly insulated. It has an IP65 protection rating, meaning its dust and oil resistant. Its suitable for controlling a variety of devices from robotic arms to garage doors.Features and Benefits• Dimensions of 30.3 mm (L) x 230.5 (W) x 30 mm (D) • Maximum Voltage (AC) of 400 V • Maximum Voltage (DC) of 250 V • Cable connection • Screw terminal • DPST pole and throw configuration • Minimum operating temperatures -25°C • Maximum operating temperature of +70°C • 0.1 N operating force • Vertical orientation • Minimum of 15,000,000 operations • Snap minimum operating contact type • Thermoplastic fibreglass housing type • Adjustable lever actuator type • Vertical mounting orientation • IP65 rating for dust and water protectionRS PRORS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
