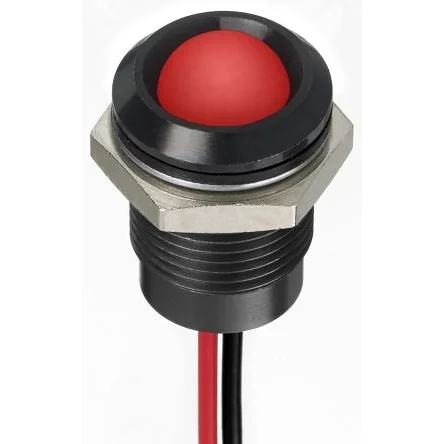

RS PRO Red Panel Mount Indicator, 24V dc, 14mm Mounting Hole Size, Lead Wires Termination, IP67 - 1302278

Voltage Rating = 24V dc
Light Output Colour = Red
Mounting Hole Size = 14mm
Lamp Type = LED
Termination Type = Lead Wires
IP Rating = IP67
Bezel Style = Prominent
Current Rating = 20mA
Intensity = 2800mcd
Length = 22.2mm

UL Recognised Component. Fixing nut and spring washer. 2 V dc LED indicators should not be operated without a stable series resistor or other current-limiting device. RS PRO 14 mm Rear Epoxy Sealed IP67 Short Body LED Indicators. RS PRO range of 14 mm diameter panel mount short body LED indicators with 10 mm coloured diffused LEDs. The indicators are available in bright or black chrome bezel finish with Prominent or flush bezel styles. Voltages in the range are available in 2 V, 12 V and 24 V dc, 110 V ac and 220 V ac. They are rear end potted with epoxy and 200 mm long wires and IP67 panel sealed. Supplied with fixing nut and spring washer. Features and Benefits. • IP67 Panel sealed • Rear end epoxy sealed • Anti-vibration • Coloured diffused LED • Wide viewing angle • 200 mm UL Approved wire terminations. Applications include:. • Medical • Telecommunications • Engineering • Transport Systems • Special Vehicles • Agricultural Vehicles • General out door applications
