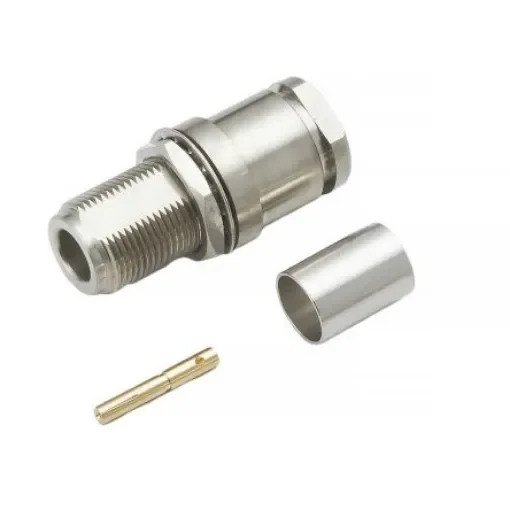

RS PRO, Plug Cable Mount N Connector, 50O, Solder Termination, Straight Body - 1706980

RS Pro Cable Mount Bulkhead Fitting N Type ConnectorThe RS Pro straight cable mount bulkhead fitting N-type, male connector has applied panel thickness of 0.327in. The low PIM connector is ideal where PIM (Passive Inter-modulation Distortion) is a concern for the design work. The centre contact has to be assembled with the cable inner conductor by soldering and the nut can be clamped on the cable for transmission and fixing. It is used with BELDEN 9913 and LMR400 cables.Features and Benefits• Beryllium copper contact • Bronze body • Gold contact plating • Impedance is 50ohm • Low loss connection • Operating frequency is 11GHz • Operating temperature ranges between -40°C and 85°C • Solder termination method • Threaded mating • WaterproofCertifications• ANSI/ESD S20.20:2014 • BS EN 61340-5-1:2007
