RS PRO, Plug Cable Mount N Connector, 50O, Solder Termination, Straight Body - 1706978

Name: RS PRO, Plug Cable Mount N Connector, 50O, Solder Termination, Straight Body - 1706978
SKU: 1706978
Price: 30.71 EUR
Availability: InStock

High-performance N connector plug for reliable low PIM applications.

Manufacturer part number: 1706978

GTIN: 5056279086448

Vendor: YACHTNEEDS-RS

Availability: In stock

€30.71 incl tax

Qty:

i h

Only Ships to: France, Monaco, Italy

For shipping outside these regions, please contact customer support.

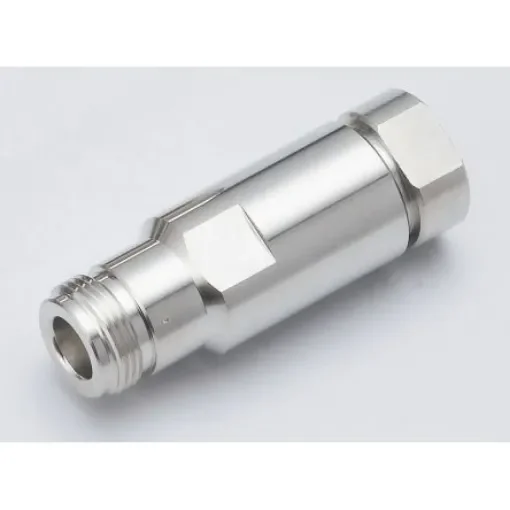

RS Pro Cable Mount N Type ConnectorThe RS Pro straight cable mount N-type, male connector plug is used for 3/8in helical cable application. The low PIM connector series is ideal where PIM (Passive Inter-modulation Distortion) is a concern for the design work. The centre contact has to be assembled with the cable inner conductor by soldering and the nut can be clamped on the cable for transmission and fixing. It is used with a helical cable.Features and Benefits• Beryllium copper contact • Bronze body • Impedance is 50ohm • Low loss connection • Operating frequency is 11GHz • Operating temperature ranges between -40°C and 85°C • Silver contact plating • Solder termination method • Threaded mating • WaterproofCertifications• ANSI/ESD S20.20:2014 • BS EN 61340-5-1:2007
