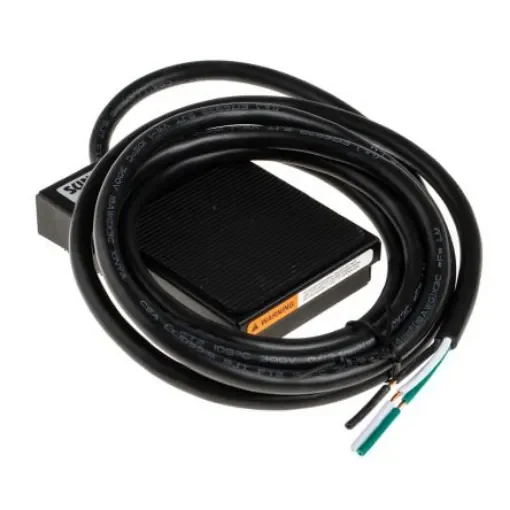

RS PRO Light Duty, Medium Duty Momentary Foot Switch - Steel Case Material, SPDT, 10 A Contact Current, 250V Contact - 1222792

RS PRO Light Duty, Medium Duty Momentary Foot Switch – Steel Case Material, SPST-1NO, 10 A Contact Current, 250 VThis RS PRO momentary foot switch lets you use foot pressure to change contacts within an electrical circuit. Its mainly found in large machinery, where operating a hand switch may be a safety concern. You can also use it for general purpose applications, including sewing machines, hoists and medical equipment. Theres a hardwearing casing made from steel. It has dimensions of (L) 75.5 mm x (H) 21.5 mm x (W) 103.5 mm. The casing is IP68 rated, so its resistant to dust and can be submerged in water up to a depth of 1.5 m for up to 30 minutes. It comes with a low action break before making SPDT (single pole double throw) contact, so the switch is normally open. This means it needs to be closed to complete the circuit. The switch is momentary and therefore you need to apply pressure to keep it in a contact position.Features and Benefits• General-purpose pedal foot switch • Contact configuration of SPST-1NO • Momentary switch operation • Steel case • Contact voltage rating of AC 250 V • Contact voltage rating of DC 500 V • Contact current rating of 10 A • Light to medium-duty use • Casing is IP68 rated for water and dirt resistance • Cable length of two metres, 18 AWG, 3 wire cable • Dimensions of (L) 75.5 mm x (H) 21.5 mm x (W) 103.5 mmRS PRORS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
