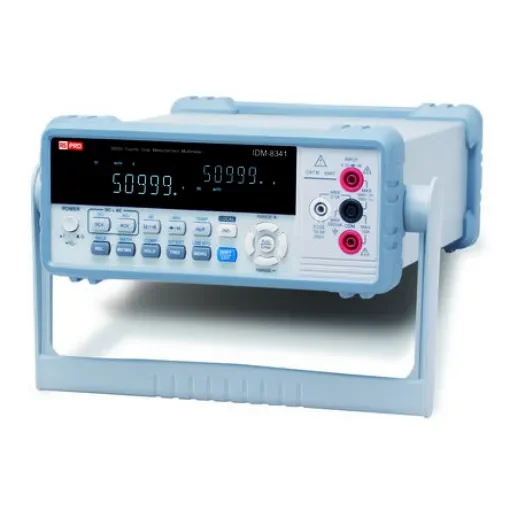

RS PRO IDM8341 Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - 1233535

Multimeter Type = Bench
Display Type = Digital
Absolute Maximum Resistance Measurement = 50MO
Absolute Maximum Capacitance Measurement = 50µF
Maximum Frequency = 1MHz
DC Current Measurement Resolution = 10nA dc
Resistance Measurement Resolution = 10mO
Capacitance Measurement Resolution = 0.001nF
Best AC Current Accuracy = ±0.5% + 20 Digitsmm

Test lead, power cord, CD (including user manual, USB driver, PC software), safety instruction sheet. 3. RS PRO IDM-8300 Series Dual Measurement Multimeters. RS PRO IDM-8300 Series bench digital multimeters (DMM) include 50 000 counts, VF (vacuum fluorescent) dual-display, 0-02% basic DC voltage accuracy and a USB protocol connector. These features provide users with measurement precision, comprehensive data observation and the convenience of a connection to a PC. RS PRO IDM-8300 Series models IDM-8341 ( ; 123-3535 123-3535 ) and IDM-8342 ( ; 123-3536 123-3536 ) offer typical multimeter capabilities plus capacitance measurement. ; 124-0228 124-0228 has all the features of model IDM-8342 and offers, in addition, temperature measurement and USB storage for data collection and GPIB (general purpose interface bus). GPIB offers the IEEE 488 standard digital 8-bit parallel communications interface for automatic measurement and convenient data save and retrieval. The RS PRO range of handheld and bench digital multimeters are great value for money and also high quality you can rely on. What are the key features of the RS PRO IDM-8300 Series Meters?. • 50 000 counts • Vacuum Fluorescent Display (VFD) with 2 colours • Dual measurement • Fast measurement rate • 0.02% DCV basic accuracy • Manual and auto-ranging • True RMS (AC, AC+DC) • 11 measurement functions • Max/Min, REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm • Standard USB device for communicating with a PC • LCD display - readouts can be viewed. What does it measure? AC and DC Current DC and AC Voltage Capacitance, Continuity, Diode, Frequency, Resistance, RMS, Temperature. What are the typical applications?. A digital multimeter (DMM) is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas: • Production test and quality inspection • Educational laboratory experiments • Repair and service • Circuit testing and debug. Safety guidelines When using any electrical test equipment it is advised that you refer to the user ‘s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards. Does the RS PRO IDM-8300 Series come with any warranty?. You have peace of mind as the RS Pro IDM 8300 Bench Digital Multimeters are backed by 3 years of warranty.
