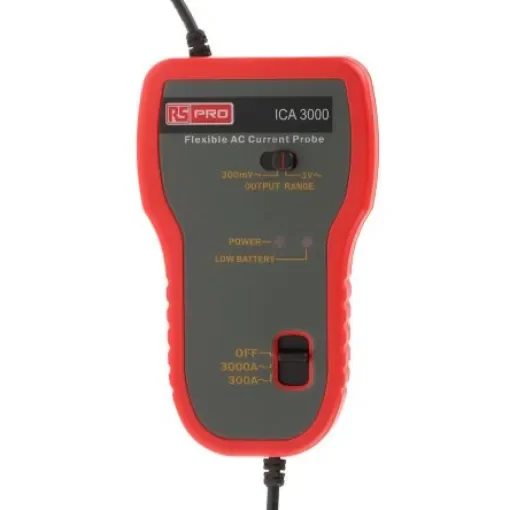

RS PRO ICA3000 Current Clamp, AC Adapter, 3kA ac AC Max - 1232199
The RS PRO ICA3000 Current Clamp measures up to 3kA AC with high accuracy and flexibility for various electrical applications.
Manufacturer part number: 1232199
GTIN: 5056112291008
Adapter Type = AC
Maximum AC Current = 3kA ac
Best Accuracy = ±0.5 % ± 5 Digits (AC Voltage), 1 (AC Current) %
Maximum Conductor Size = 194mm
Maximum Bandwidth = 10kHz
Model Number p = ICA3000
EN61010-1 Cat III, 600V. Operator manual, AA alkaline batteries (x2). 3. RS Pro ICA3000 Flexible 3000 A Current Probe. RS Pro ICA3000 is a great value, flexible probe. It differs from normal clampmeters because it can pass through obstacles at will and wind many conducting wires simultaneously. Features and Benefits. 2 selectable ac current ranges, 300 A and 3000 A DC offset ; 20 mVDC (3000 A AC range), ; 20 mVDC (300 A AC range) 2 output sensitivities, 300 mV/A and 1 V/A Wide bandwidth (-3dB) 10 to 10 kHz, low phase shift Low battery indication Input protection up to 600 V Noise ; 2 mVACRMS Load Impedance 1kO Battery 2 x AA 1.5V Alkaline (2000 mAHrs) Battery life 300 hours Probe length 24 in / 610 mm Cable length 1700 mm from probe to box, 1700 mm from box to output Operating environment -10 to +50 °C, 15% to 85% RH Storage environment -20 to +60 °C, 15% to 85% RH Terminated with right angle 4 mm shrouded plugs Dimensions (box): 130 x 80 x 43 mm Weight 430 g. Areas of Application. Any electrical system Multimeters Recorders Data loggers
