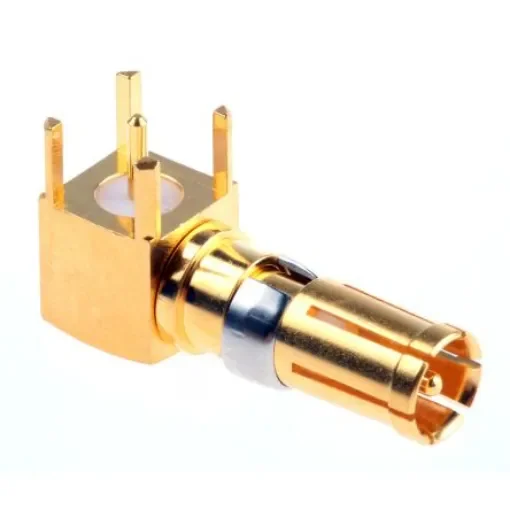

RS PRO Female Solder D-Sub Connector Coaxial Contact, Gold over Nickel Coaxial - 485209
Reliable female solder D-Sub connector for high-performance coaxial applications.
Manufacturer part number: 485209
GTIN: 5056111902066
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Gender = Female
Contact Material = Copper Alloy
Termination Method = Solder
Maximum Contact Resistance = 2.7mO
Current Rating = 2A
Length = 18.7mm
Gender details relate to centre conductor. Power/Coaxial Contacts. A range of Contacts designed for use in mixed layout Connector shells including Power, Coaxial and High Voltage types. PCB holes for coax plug and socket: 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia. PCB mounting inserts are not suitable for use with right angle PCB connectors. PCB holes for 20A and 40A PCB contacts are 2.85mm and 3.75mm respectively. Snap-fit contacts removed with tool, stock no. ; 485-221 485-221 'M' DIN41612 connectors may also be used with mixed layout D shells 50 Ohm Coaxial contacts (straight) accept RG178B/U ; RG174A/U cables. Use crimp tool (stock no. ; 470-099 470-099 ) for the braid and solder for the centre contact. Contacts removed with tool, stock no. ; 485-221 485-221
