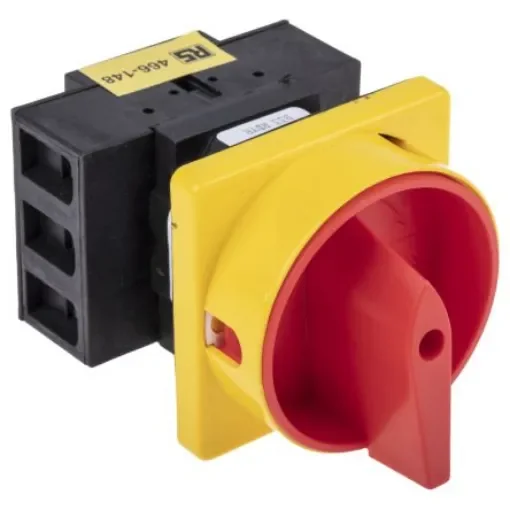

RS PRO 3P Pole Panel Mount Isolator Switch - 25A Maximum Current, 11kW Power Rating, IP65 - 466148

Number of Poles = 3P
Maximum Current = 25A
Mounting Type = Panel Mount
IP Rating = IP65
Power Rating = 11kW
Voltage Rating = 750V
Electrical Phase = 3
Handle Colour = Red
Switch Rating = 6kV
Length = 125mm
Width = 100mm
Depth = 70mm
Terminal Type = Screw°C

UL, CSA. RS PRO Panel Mount (Padlockable). This Panel Mount Non- fused isolator switch from our high-quality own brand RS PRO is designed for use with low voltage switchgear such as power distribution, load isolation and motor start/stop. Features and Benefits. • Easy installation • Compact and reliable • Finger protection • Padlockable for added security • Single hole for front mounting • 90° switching angle • Forced open contacts • Terminal screws in open contacts • All switch rating at AC22 • Maximum panel thickness 3mm • Minimum depth behind panel 102mm • Maximum depth behind panel 117mm • Actuator dimensions 64x64x32mm • IP65 product rating (protection from total dust ingress). What is the difference between a fused switch disconnector and a non-fused switch disconnector?. Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit. How does an isolator switch work?. This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications. RS PRO. RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they ‘re only given the RS PRO Seal of Approval if we ‘re confident of their exceptional quality, which means you can be confident too.
