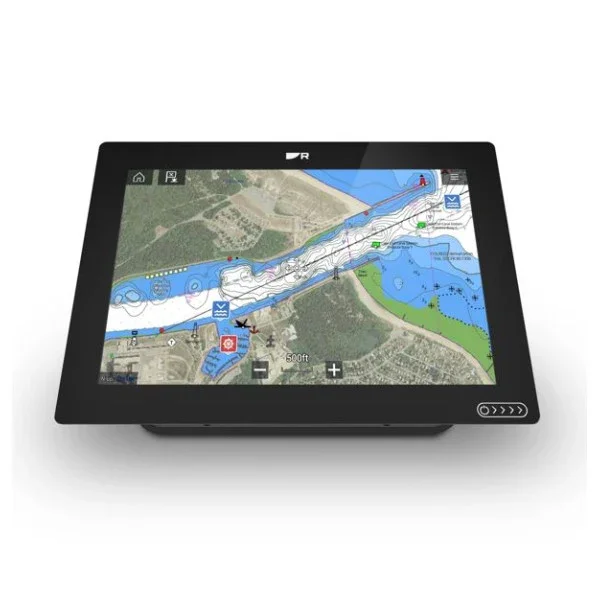

Raymarine Axiom 12+ Glass Bridge Chartplotter 12 Inch - E70638
Create a seamless navigation experience on board with the Raymarine Axiom 12+ Glass Bridge Chartplotter. This powerful multifunction display is the perfect addition for both the serious sailor and the sport fisherman, offering unprecedented clarity and processing speed. The Axiom 12+ (E70638) is optimized for performance and ease of use, allowing you to spend more time on the water and less time on your equipment.
Key Features

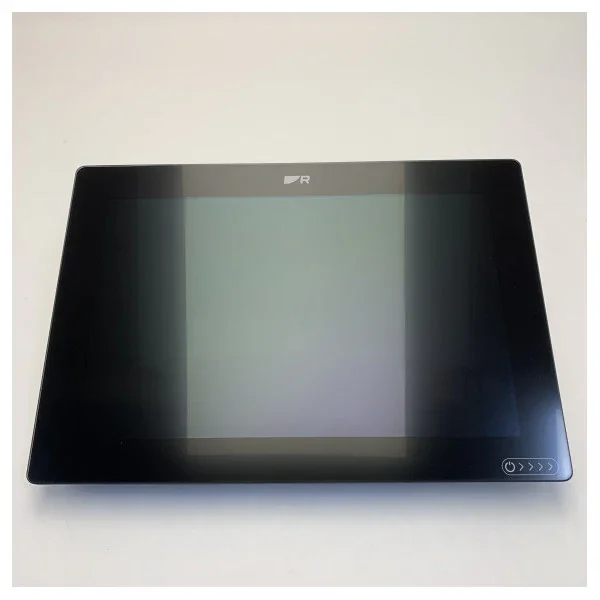

- Superior All-Weather Touchscreen: The 12 inch optically bonded display delivers up to 25 percent more brightness than previous models. This ensures sharp images and vibrant colours, even in direct sunlight. The hydrophobic coating repels water, resulting in reliable touchscreen operation in all weather conditions.
- Powerful Quad-Core Processor: The new generation quad-core processor provides lightning-fast performance. You will notice this immediately when loading maps, rendering augmented reality, and running multiple applications simultaneously.
- Intuitive LightHouse 3 OS: The award-winning LightHouse 3 operating system is fast, smooth, and easy to learn. The interface is designed to make your navigation simpler with customizable home screens and quick access to all your features.

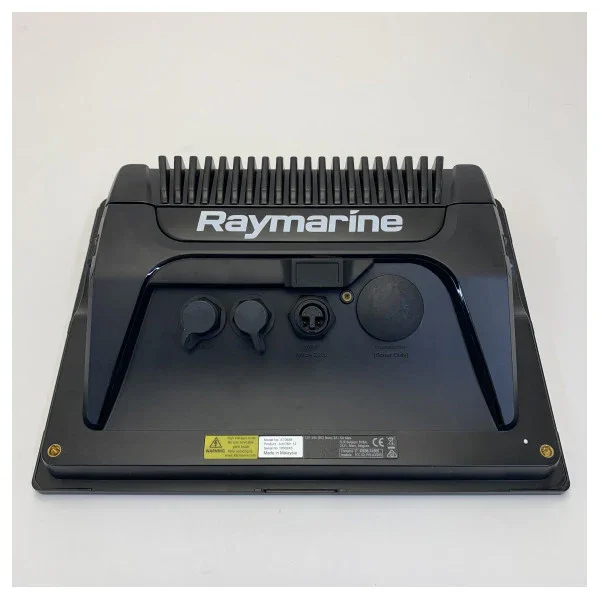

- Extensive Network Connectivity: The Axiom 12+ is equipped with NMEA 2000 and NMEA 0183 ports, RayNet (Ethernet), and advanced Wi-Fi and Bluetooth connectivity. This makes integration with radar, sonar, autopilots, engine data, and more a breeze.
- Smart Navigation with RealVision 3D: Support for Raymarine's advanced RealVision 3D sonar technology (transducer sold separately) provides an unprecedented view beneath the boat, making structures and fish easy to identify.
Specifications (In Text)
The Raymarine Axiom 12+ Glass Bridge Chartplotter, with model number E70638, features a 12 inch high-definition multi-touch display. The device runs on the LightHouse 3 operating system and is powered by a powerful quad-core processor. The nominal power supply voltage is 12V or 24V DC (8V to 32V DC). Connectivity includes 1x NMEA 2000 port, 1x RayNet Ethernet port, Wi-Fi, and Bluetooth. The internal memory is 16 GB with an expansion slot for MicroSD cards. The screen dimensions are 314 x 217 x 77 mm (Width x Height x Depth) and the device weighs approximately 3.5 kg. The flush mount requires a cutout of 288 x 188 mm. The device is compatible with a wide range of charts, including Navionics, C-MAP, and LightHouse Chart.
