High-Quality Autopilot Solution for Inland Navigation

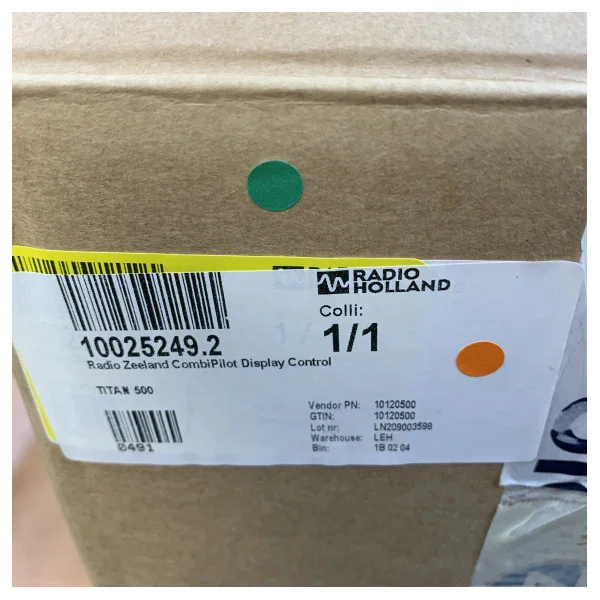

The Radio Zeeland Titan 500 Combi Autopilot Controller Unit is a compact and powerful autopilot that combines proven technology with modern digital technology. This combi pilot is specifically designed to save valuable installation space in the wheelhouse, as it integrates both a Rate of Turn Indicator and a Rudder Angle Indicator in the same housing. It is the ideal solution for both new builds and replacements in inland navigation.
Features and Functionality

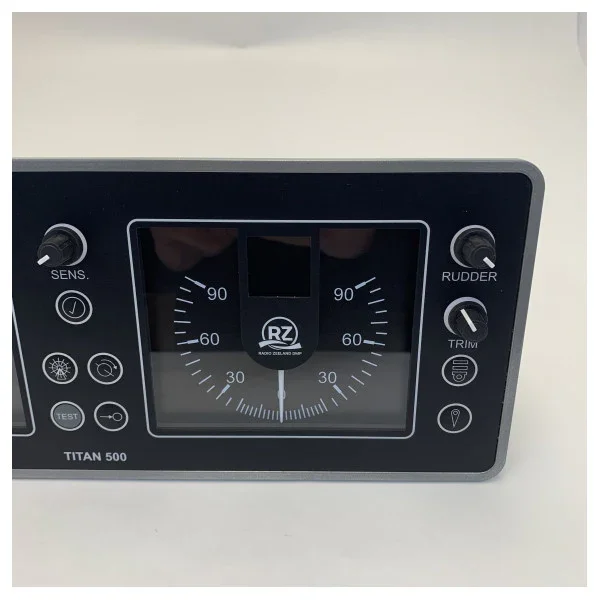

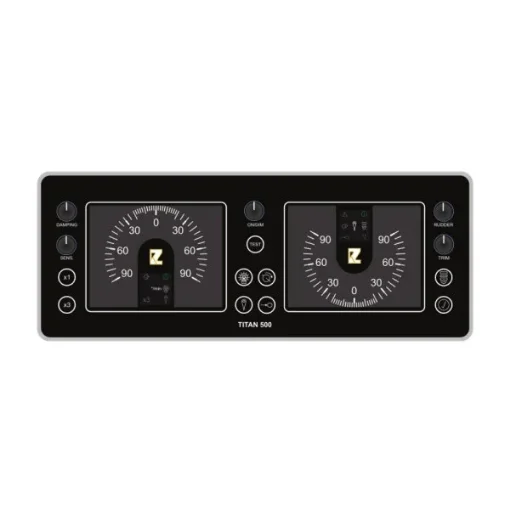

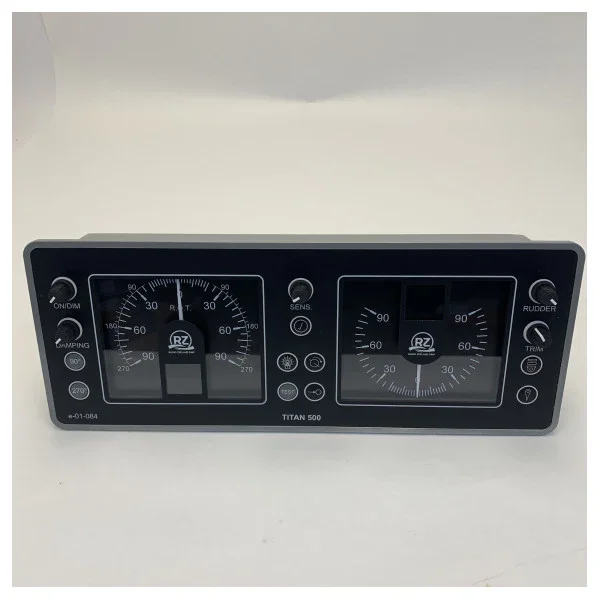

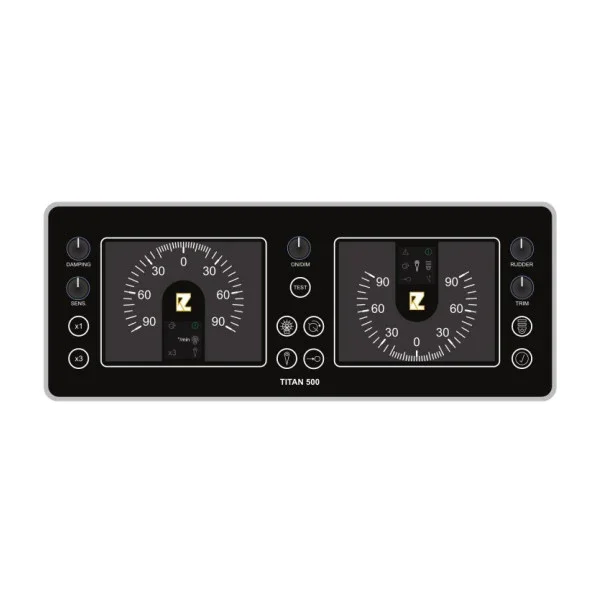

The Titan 500 guarantees a quick and orderly display of crucial navigation data. It combines analogue gauges with a small LCD screen in the centre for a digital readout of the data, including general information, feedback, and alarms.
- Compact Combi Design: Integrates ROT and RAI in a single unit for maximum space saving.
- Analogue and Digital Display: Clear analogue gauges supplemented with a digital LCD screen.
- Versatile System: Can be expanded with additional ROT or RAI sensors, a fluxgate compass, and additional TITAN-650 control levers.

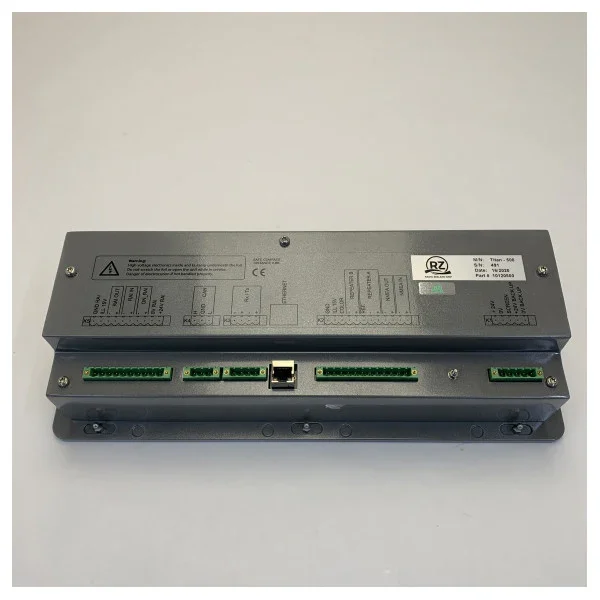

- Reliable Connection: Connected to the P-503 connection bus, which in turn is connected to the P-100 and P-300 sensors for the rate of turn indicator and rudder position indication.
Specifications
The technical details of the Titan 500 underline its professional quality and suitability for the maritime environment:
- Net Weight: 2.0 kg
- Protection: IP-50
- Temperature/Humidity: 0 to +55°C / 0 to 90% (non-condensing)

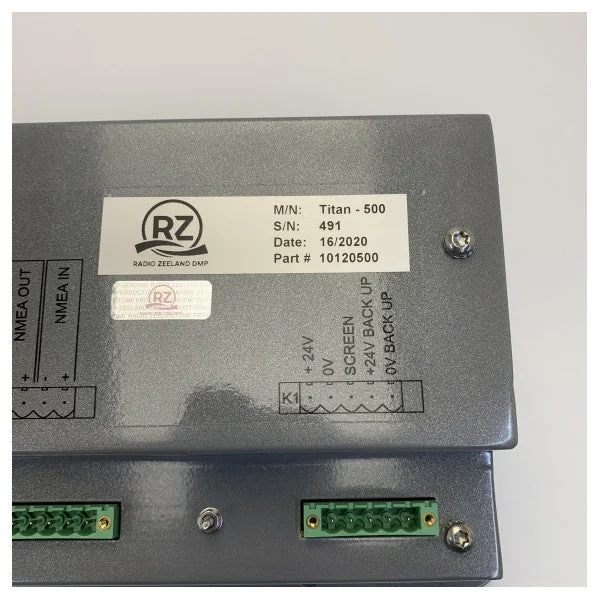

- Main Power / Back-up: 24 Vdc – 10% +30%
- Current: $< 1A$ (without repeaters)
- RAI Indicator Scale: 90° - 0° - 90°

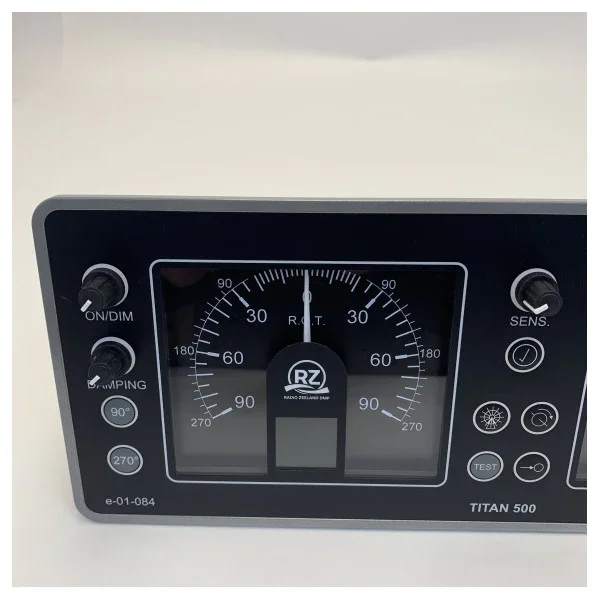

- ROT Indicator Scale: 90° - 0° - 90° or 270° - 0° - 270°
- Dimming Range: 5 - 100%
