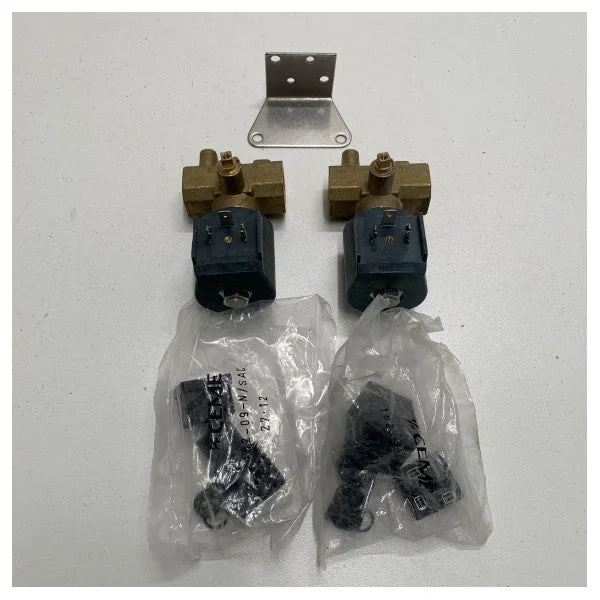

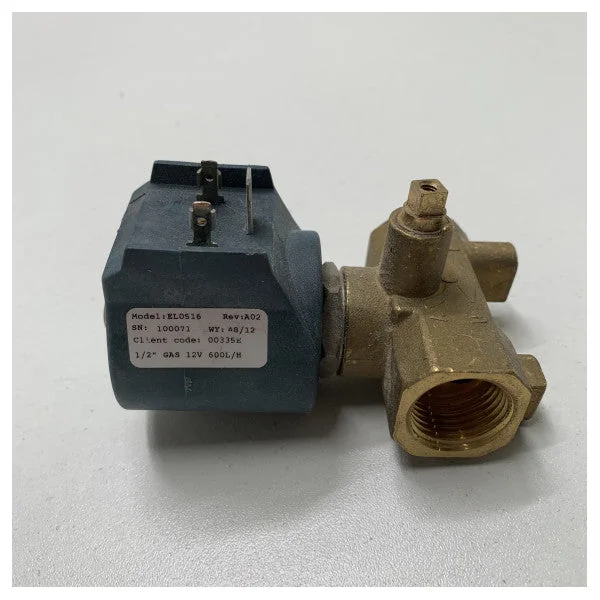

Quick EL0516 0.5 inch Solenoid Valve 12V - EL0516 1/2 12V
Product Description:
The Quick EL0516 is a compact and reliable solenoid valve with a 1/2" (12.7 mm) connection and a 12V DC power supply. This valve is ideal for various applications in pneumatics, fluid control, and other industrial processes.
Features:
- Normally Closed (NC) version: The valve is closed in its resting state and opens when voltage is applied.
- Fast response time: The valve switches quickly, making it suitable for high-frequency applications.
- Low power consumption: The valve consumes little power, making it energy-efficient.
- Compact design: The valve is small and lightweight, making it easy to install.
- Robust construction: The valve is made from high-quality materials and is resistant to high temperatures and pressures.
Specifications:
- Medium: Air, water, oil (non-viscous)
- Voltage: 12V DC
- Power: 10W
- Current consumption: 0.83A
- Pressure range: 0-10 bar (0-145 psi)
- Temperature range: -10°C to +60°C (14°F to 140°F)
- Connection: 1/2" BSP (G1/2)
- Response time: ≤20ms
- Media housing: Brass
- Coil housing: Nickel-plated brass
- Diaphragm: NBR (Nitrile rubber)
- Spring: Stainless steel
