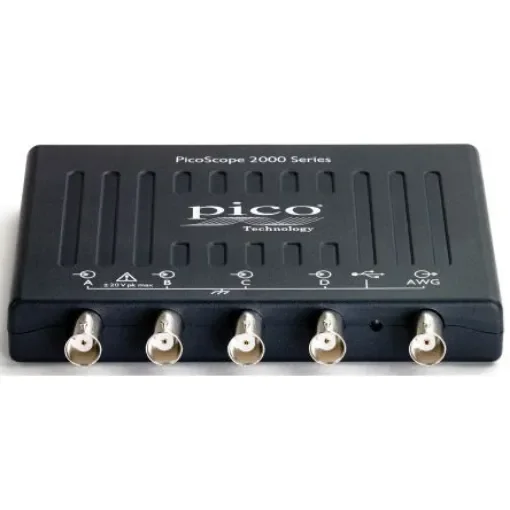

Pico Technology 2406B PicoScope 2000 Series, 50MHz PC Based Oscilloscope, 4 Analogue Channels - PicoScope 2406B

EN 61010-1:2010. USB 2.0 cable, passive probes (x4), quick start guide, software and reference CD. Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately. 5. PicoScope 2406B 4-channel 50 MHz PC Oscilloscope. PicoScope 2406B is a 50 MHz 4-channel oscilloscope which features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2406B has a maximum sampling rate of 500 MS/s, buffer memory of 32 Msamples and 1 MHz AWG signal generator. Fifteen automatic measurements are available in scope mode and another eleven in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC. The 2406B offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2406B takes advantage of the computing, display and communication power of an attached laptop or desktop PC – now incorporating pinch, zoom and drag capabilities. Features and Benefits. Powerful, portable, compact 4 analog channels 50 MHz bandwidth Built-in arbitrary waveform generator 1 GS/s, 32 MS buffer USB connected and powered Serial decoding/FFT advanced waveform analysis included Excellent signal integrity Dimensions 130 x 104 x 18.8 mm Weight ;200 g. Areas of Application. Design Test Education Service Monitoring Fault-finding Repair
