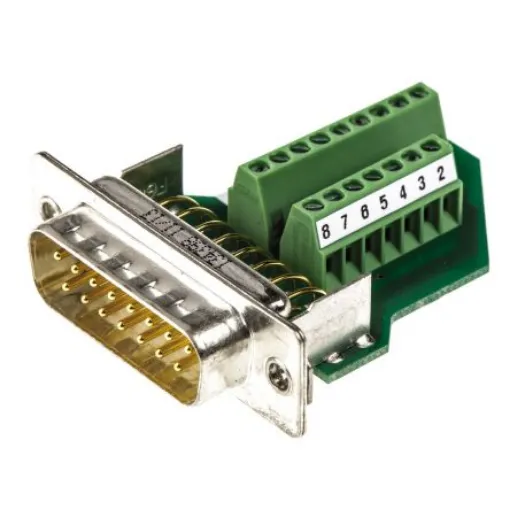

Phoenix Contact VS-15-ST-DSUB/16-MPT-0.5 15 Way Panel Mount D-sub Connector Plug - 1688078
Reliable 15 way D-sub connector for panel mounting with screw terminal termination.
Manufacturer part number: 1688078
GTIN: 4017918179564
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Contacts = 15
Gender = Male
Body Orientation = Straight
Mounting Type = Panel Mount
Termination Method = Screw Terminal
Current Rating = 5.0A
Housing Material = PBT
Voltage Rating = 60.0 V
Length = 39.3mm
Width = 12.6mm
Depth = 40.8mm
Dimensions = 39.3 x 12.6 x 40.8mm
Contact Size = 2°C
Phoenix Contact Variosub rewireable D-Sub Connectors. A Phoenix Contact range of rewireable plug connectors specially designed for data technology in an industrial environment. Features and Benefits. Push-pull locking mechanism Contact inserts comprise of a conventional D-Sub connector mated to a PCB containing screw terminals for ease of use and re-use Up to IP67 protection rating and optional EMC protection Male and Female available Gold over nickel contacts 12.6mm wide IP20 protection. Typical Applications. The connectors are suitable for applications requiring a high degree of protection to high temperature or mechanical stress.
