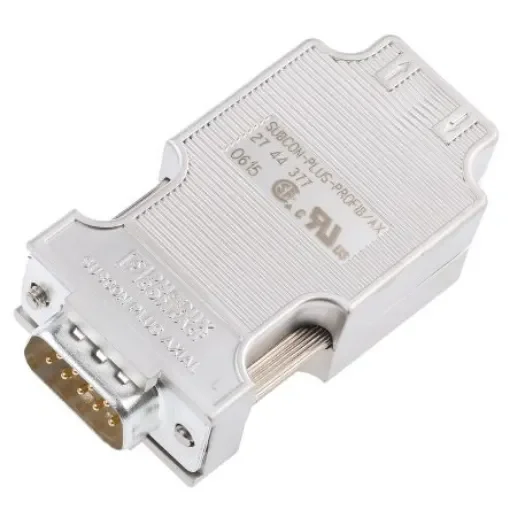

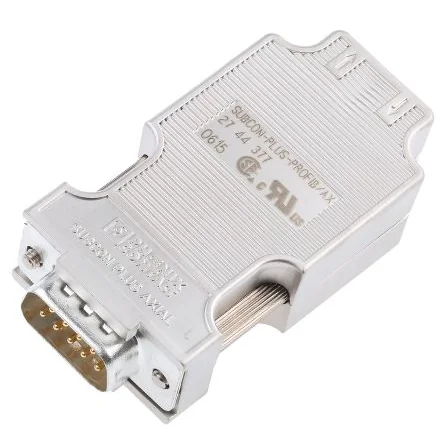

Phoenix Contact SUBCON-PLUS-PROFIB/AX 9 Way Cable Mount D-sub Connector Plug - 2744377

Number of Contacts = 9
Gender = Male
Body Orientation = Straight
Mounting Type = Cable Mount
D Connector Type = D-Sub Bus
Termination Method = Spring Terminal
Current Rating = 100mA
Housing Material = ABS
Voltage Rating = 5 V
Length = 58.2mm
Width = 17mm
Depth = 17.0mm
Dimensions = 31.5 x 58.2 x 17mm
Minimum Operating Temperature = -20.0°C

SUBCON-PLUS D-Sub Bus ConnectorFrom Phoenix Contact, this SUBCON-PLUS series Bus connector can be used on all Profibus systems up to 12 Mbit/s. The connector has a 9-posistion D-Sub with two cable entries, for additional connection of a programming or service device. The D-sub Bus Connector also features a switch operated termination resistor, which when activated disconnects the output circuit to aid fault finding by segmenting the network.Features and Benefits• Spring terminal or screw terminal connector technology (..SC..) • Integral strain relief • Cable entry optionally left or right (exc. PROFIB/PG and PROFIB/PG/SC2) • Programming connection optional (..PG..) • Cable entry axial (..AX..) • Mating Cycles: 200 min. • Metal plated housing • Protected to IP40Application InformationPROFIBUS Fieldbus connecters are typically used for linking process controls and plant automation modules.
