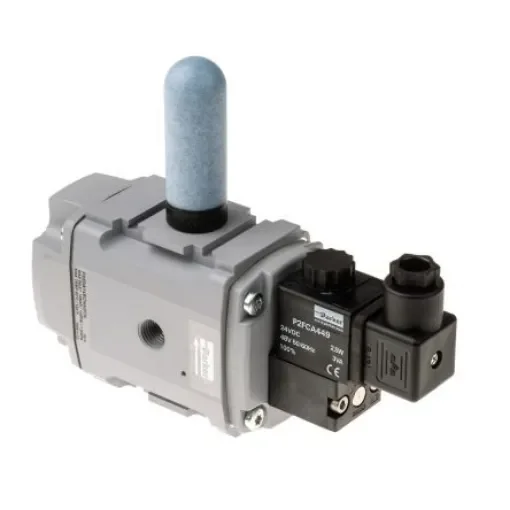

Parker 3/2 Dump Valve - Pilot/Spring G 1/2 P32 Series 24V dc - P32DA14SCNA2CN

Function = 3/2
Connection Port Thread = G 1/2
Actuation Type = Pilot/Spring
Manufacturer Series = P32
Mounting Style = Stand-Alone
Solenoid Voltage = 24V dc
Solenoid Fitted = Yes
Number of Ports = 3/2
Body Material = Aluminium
Maximum Flow Rate = 108SCFM
Minimum Operating Pressure = 3bar
Maximum Operating Temperature = +50°C
Thread Standard = G

Parker Coil Dump ValveThe Parker P31 series 3/2 ports remote-operated solenoid dump valve has a supply voltage of 24VDC. This valve has a 1/4in G port connection. It automatically shuts off upstream pressure and exhausts the downstream pressure when the pilot pressure is released.Features and Benefits3-way, 2-position function automatically dumps downstream pressure on the loss of pilot signal High flow and exhaust capability Maximum flow rate is 108SCFM Modular design with BSPP seal Operating pressure ranges between 3bar and 10bar Operating temperature ranges between -10°C and +50°C Silencer included
