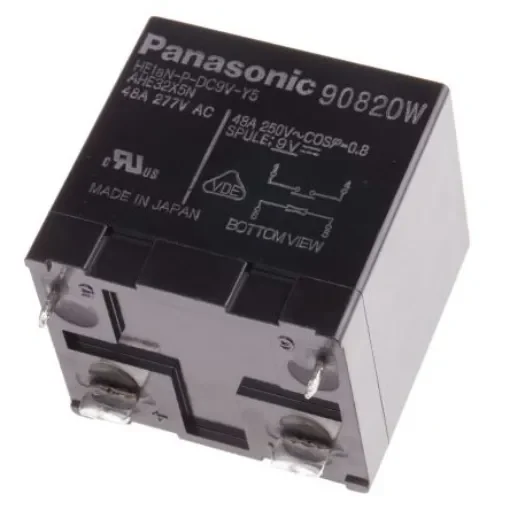

Panasonic PCB Mount Power Relay, 9V dc Coil, 48A Switching Current, SPST - HE1AN-P-DC9V-Y5
High capacity PCB mount power relay with 9V DC coil and 48A switching current for reliable performance.
Manufacturer part number: HE1AN-P-DC9V-Y5
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 9V dc
Contact Configuration = SPST
Mounting Type = PCB Mount
Switching Current = 48A
Number of Poles = 1
Latching = No
Terminal Type = Through Hole
Length = 38mm
Coil Resistance = 42.2O
Coil Power = 1.92W
Life = 10000000 (Electrical) cycles°C
Maximum Switching Power AC = 23.52 kVA
Ul; SCA; VDE; TUV. HE Series. These PCB mount power relays have a high capacity and long life and offer excellent surge resistance. Typical applications for these PCB power relays include office equipment, industrial equipment and home appliances. High capacity and long life Single side stable type Surge voltage more than 10,000V Excellent resistance to contact welding due to the pre-tension and kick-off mechanism Typical applications: Machine tools, Moulding equipment, Air conditioners, Heating equipment
