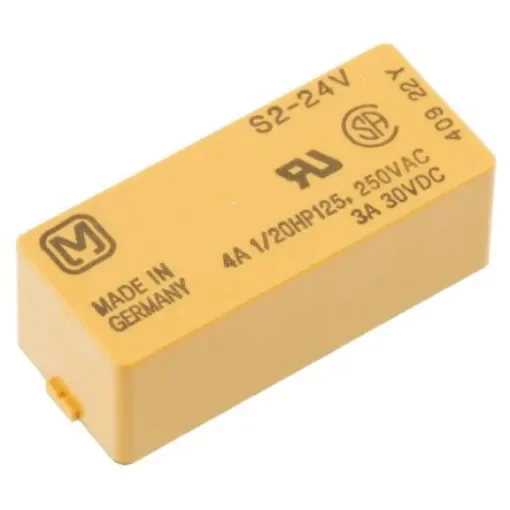

Panasonic PCB Mount Power Relay, 24V dc Coil, 4A Switching Current, DPDT - S224ULCSAD
Reliable Panasonic PCB mount power relay with 24V DC coil and 4A switching current for efficient control.
Manufacturer part number: S224ULCSAD
Availability: Out of stock
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = DPDT
Mounting Type = PCB Mount
Switching Current = 4A
Number of Poles = 2
Latching = No
Terminal Type = Through Hole
Length = 28mm
Coil Resistance = 2850O
Coil Power = 202mW
Contact Material = Gold Plated°C
Maximum Switching Power DC = 90 W
UL, CSA. S Series Relay. These PCB mount power relays are highly reliable and efficient, have a long life and are able to provide wide ranging control. These PCB power relays also offer high sensitivity, strong resistance to vibration and shock and have a low thermal electromotive force. Low profile, high sensitivity relays Excellent resistance to vibration and shock Low EMF (approx. 0.3µV) DIL terminal array to fit 2.54mm grid Dimensions, H10 x W28 x D12 mm PCB mounting socket available, see stock no. ; 127-9342 127-9342
