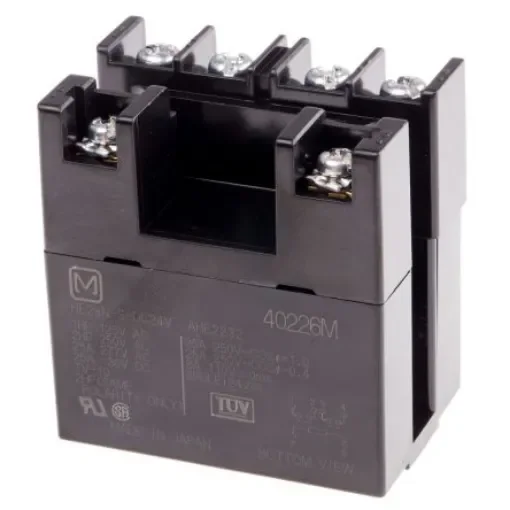

Panasonic PCB Mount Power Relay, 24V dc Coil, 30A Switching Current, DPST - HE2AN-S-DC24V
High-capacity PCB mount power relay with 24V DC coil and 30A switching current for reliable performance.
Manufacturer part number: HE2AN-S-DC24V
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = DPST
Mounting Type = PCB Mount
Switching Current = 30A
Number of Poles = 2
Latching = No
Terminal Type = Screw
Maximum Switching Voltage AC = 277V ac
Maximum Switching Voltage DC = 30V dc
Length = 50mm
Coil Resistance = 300O
Coil Power = 1.92W
Height = 44.5mm
Maximum Switching Power AC = 6.925 kVA
Ul; SCA; VDE; TUV. HE Series. These PCB mount power relays have a high capacity and long life and offer excellent surge resistance. Typical applications for these PCB power relays include office equipment, industrial equipment and home appliances. High capacity and long life Single side stable type Surge voltage more than 10,000V Excellent resistance to contact welding due to the pre-tension and kick-off mechanism Typical applications: Machine tools, Moulding equipment, Air conditioners, Heating equipment
