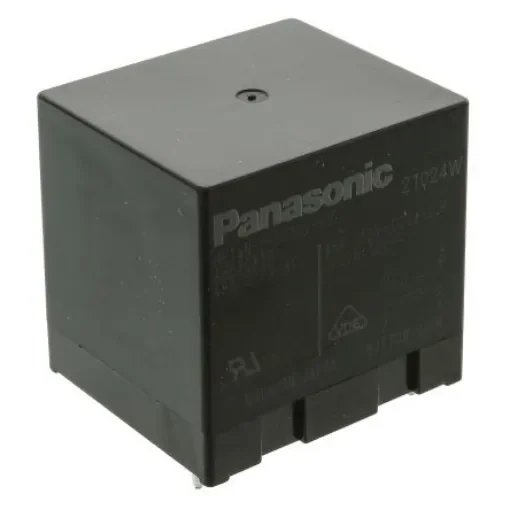

Panasonic PCB Mount Power Relay, 12V dc Coil, 48A Switching Current, SPST - HE1AN-P-DC12V-Y5
High capacity Panasonic PCB mount power relay with 12V dc coil and 48A switching current.
Manufacturer part number: HE1AN-P-DC12V-Y5
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Contact Configuration = SPST
Number of Poles = 1
Latching = No
Terminal Type = Through Hole
Length = 38mm
Coil Resistance = 75O
Coil Power = 1.92W
Height = 36.3mm
Maximum Switching Power AC = 23.52 kVA
Ul; SCA; VDE; TUV. HE Series. These PCB mount power relays have a high capacity and long life and offer excellent surge resistance. Typical applications for these PCB power relays include office equipment, industrial equipment and home appliances. High capacity and long life Single side stable type Surge voltage more than 10,000V Excellent resistance to contact welding due to the pre-tension and kick-off mechanism Typical applications: Machine tools, Moulding equipment, Air conditioners, Heating equipment
