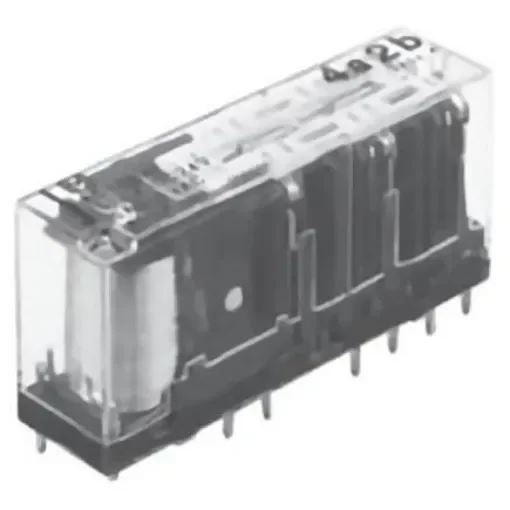

Panasonic PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 3PDT - SFS6-L-DC24V
Compact PCB mount relay with 6 poles, ideal for safety applications in machinery.
Manufacturer part number: SFS6-L-DC24V
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Mounting Type = PCB Mount
Contact Configuration = 3PDT
Number of Poles = 6
Coil Resistance = 1.152 kO
Switching Current = 6A
Coil Power = 500mW
Maximum Switching Current DC = 6 A
Maximum Switching Voltage DC = 125V
Maximum Switching Voltage AC = 250V
Terminal Type = Through Hole
Height = 24mm
TUV. For relay 699-7014, see suitable socket stock nos. 699-7026 and 699-7020,and for relays with contact configuration 3PST-NO; 3PST-NC see suitable socket stock nos.699-7051 and 699-7054. SFS Series. These slim, compact, PCB mount safety relays have forcibly guided contacts and are available with built in LED indication and or diodes. Typical applications for these PCB safety relays include machine tools, robots, safety PLCs, circuits stringent safety standard requirements such as those,in motor vehicle production equipment. Nominal Switching Capacity 6A at 250Vac Maximum switching power 180W Nominal operating power 360mW (4 pole) 500mW (6 pole) Slim profile Fast response time, 8 ms or less High shock resistance, functional: Min 200m/s ;sup>2 ;/sup> Forcibly guided contact structure
