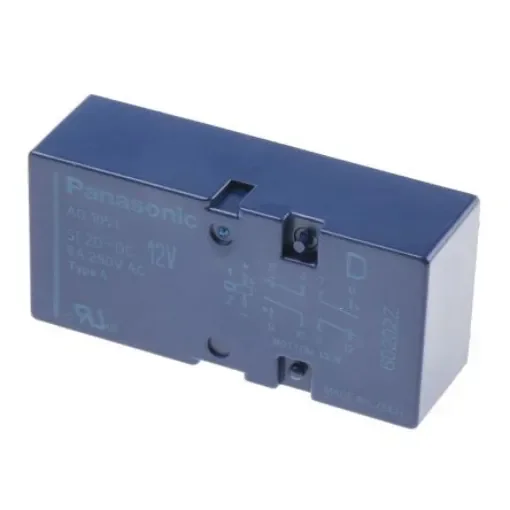

Panasonic PCB Mount Force Guided Relay, 12V dc Coil Voltage, 2 Pole, DPDT - SF2D-DC12V
Reliable 12V DC PCB mount relay designed for safety in critical applications.
Manufacturer part number: SF2D-DC12V
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Mounting Type = PCB Mount
Contact Configuration = DPDT
Number of Poles = 2
Coil Resistance = 288O
Switching Current = 6A
Maximum Switching Current AC = 6 A
Maximum Switching Current DC = 6 A
Maximum Switching Voltage DC = 30V
Maximum Switching Voltage AC = 440V
Terminal Type = Through Hole
Height = 16mm
EN50205 Type A, IEC60664-1 III/4kV. cUL, TUV, SEV. Force Guided Safety Relay - SF2 Series. Used in machines, apparatus or installations that need to meet special safety requirements (presses, combustion, railway, medical). Maximum switching voltage: 400V Operating temperature range: -40°C to +70°C Contact material: AgSnO ;sub>2 ;/sub> with Au flash
