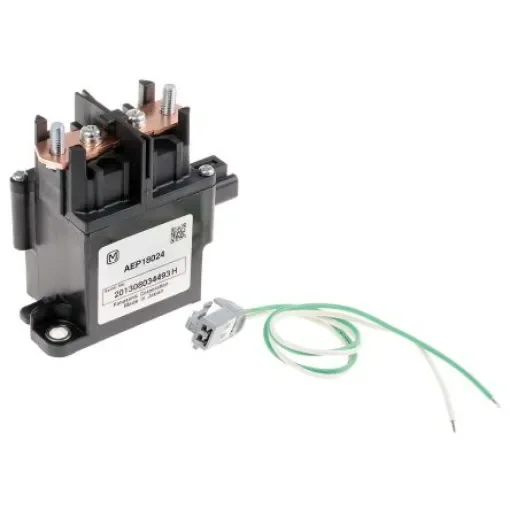

Panasonic Flange Mount Power Relay, 24V dc Coil, 80A Switching Current, SPST - AEP18024
Reliable Panasonic power relay with 80A switching current and 24V DC coil for various applications.
Manufacturer part number: AEP18024
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = SPST
Mounting Type = Flange Mount
Switching Current = 80A
Number of Poles = 1
Latching = No
Terminal Type = Screw
Length = 82.25mm
Coil Resistance = 7.27O
Coil Power = 5W
Isolation Coil To Contact = 2.5kV
Panasonic Non-Latching RelayThe Panasonic AEP series flange mount non-latching relay has an SPNO contact configuration It is actuated with a 24VDC coil and 80A switching current. This power relay also has a low operating sound, high contact reliability and high current control. It offers a high voltage and current cut-off capacity in a compact packageFeatures and BenefitsCoil power is 5W Coil resistance is 7.27ohm Terminal type is screw Contact resistance remains stable regardless of the ambient conditions Ambient temperature ranges between -40°C and 80°CApplicationsCogeneration systems Battery inspection and testing equipment Construction machinery Automatic guided vehicles Welding equipment Inverter control Solar power generation systems and elevatorsCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
