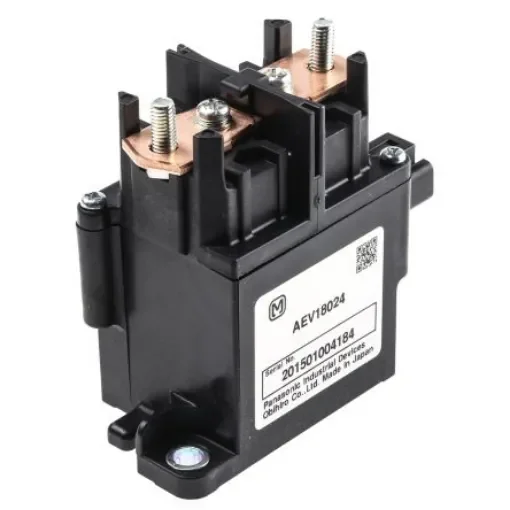

Panasonic Flange Mount Automotive Relay, 24V dc Coil Voltage, 80A Switching Current, SPST - AEV18024
Reliable Panasonic automotive relay for high current applications with 24V DC coil and 80A switching capacity.
Manufacturer part number: AEV18024
Coil Voltage = 24V dc
Coil Power = 4.2W
Contact Configuration = SPST
Number of Poles = 1
Switching Current = 80A
Maximum Switching Voltage DC = 400V dc
Mounting Type = Flange Mount
Terminal Type = Screw
Height = 79mm
Panasonic High Capacity AEV Series Automotive Relays. Automotive power relays come in many different shapes, sizes, styles, and ratings. They can be found in almost every car, truck, tractor or boat. Relays enable low amperage circuits to switch circuits with higher amperages. Most automotive relays will have either Single-Pole, Single-Throw (SPST) or Single-Pole, Double-Throw (SPDT) arrangements that draw minimal current. In addition, they will have either N/O (Normally Open) or N/C (Normally Closed) contacts. From Panasonic the AEV series of high current automotive relays designed for chassis or flange mounting. Featuring a sealed capsule mechanism, the contact portion is sealed in hydrogen gas, so no contact oxidation occurs. Thus, promoting high contact reliability. Extremely reliable and efficient the AEV series of automotive relays typically used for switching high current circuits or high DC voltage applications. Compact and lightweight the Panasonic AEV automotive relays are often used in designs where space saving is a priority. Manufactured from high-quality materials the Panasonic AEV series relays have a long life and can be relied upon for all your design, maintenance, and repair needs. Features and Benefits. ;ul> ;li>Robust and reliable ;/li> ;li>Compact case for space-saving ;/li> ;li>Lightweight ;/li> ;li>Dust and waterproof ;/li> ;li>SPNO contact configuration ;/li> ;li>Form A with screw terminals and terminal protection cover ;/li> ;li>Copper alloy contacts ;/li> ;li>12 V dc and 24 V dc coils ;/li> ;li>80 A 120A and 300 A capacity ;/li> ;li>Wide temperature range, -40 to +80°C ;/li> ;/ul>. Applications. High current automotive relays are used in a wide range of switching applications across many different types of environments and sectors. Automotive relays are one of the most common components used in electrical and electronic power circuits. Some of the most common are;. ;ul> ;li>Electric Vehicles ;/li> ;li>Auto Electrical ;/li> ;li>Hybrid Vehicles ;/li> ;li>Fuel-cell Vehicles ;/li> ;li>Battery charge and discharge systems ;/li> ;li>General Automotive or motor use ;/li> ;li>Construction equipment ;/li> ;/ul>
