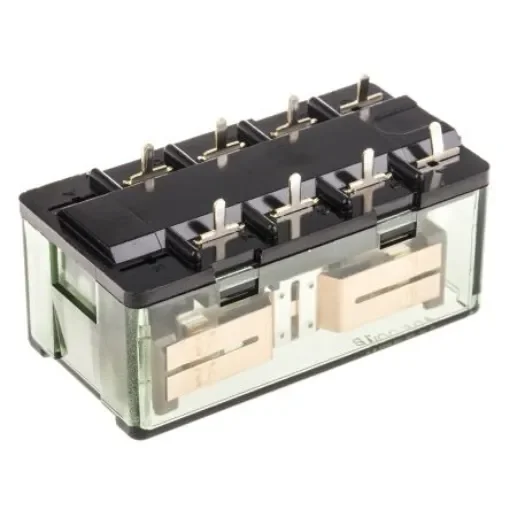

Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 15 A - SP2-P-DC24V
Reliable Panasonic DPDT relay with 24V coil, ideal for power applications.
Manufacturer part number: SP2-P-DC24V
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = DPDT
Mounting Type = PCB Mount
Terminal Type = Through Hole
Coil Resistance = 1.92 kO
Application = Power
Length = 51mm
Depth = 25.6mm
Height = 22mm
Dimensions = 51 x 25.6 x 22mm
Minimum Operating Temperature = -50°C
UL, CSA, TUV. This range also includes a PCB Mounting Board for use with relays (see stock number ; 127-9493 127-9493 .). SP Series Relay. From Panasonic, these SP Series PCB mount power relays are highly sensitive, highly reliable and have a long life. As well as being compact, the SP series PCB power relays also offer strong resistance to vibration and shock. Features and Benefits: • High sensitivity power relay • Nominal operating power of 300mW and minimum operating power of 150mW • High vibration/shock resistance • Dimensions, DPDT H22 x W50 x D25.6 mm / 4PDT H22 x W50 x D36.8 mm
