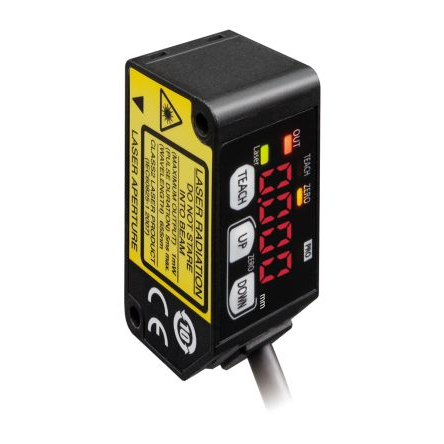

Panasonic Background Suppression Distance Sensor, Block Sensor, 200 mm Detection Range - HG-C1200
Achieve precise measurements with the Panasonic Background Suppression Distance Sensor, featuring a 200mm detection range.
Manufacturer part number: HG-C1200
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Sensor Style = Block
Detection Type = Background Suppression
Detection Range = 200 mm
Output Type = NPN
Electrical Connection = Cable
Maximum DC Voltage = 24V
Light Source = Laser Light
IP Rating = IP67
Maximum Current = 40 mA
Response Time = 10 ms
Minimum Operating Temperature = -10°C
Standards Met = EMC, FDA
HG-C -- Micro Laser Distance Sensors. HG-C series micro laser distance sensors provides high-end performance in a small lightweight package. This sensor not only indicates measured values in mm, but also outputs analog voltage. The data can be used for various calculations and storage when the output is sento to a PLC + analog unit. Also, the external input can be configured to perform one of four functions: zero adjustment, teaching, laser ON/OFF or trigger function selection. Three measurement ranges (100mm±35, 50mm±15 and 30mm±5) Analog output: 0-5 V Reduced panel size RoHS compliant Compact and lightweight High-precision measurements and excellent linearity Suitable for many applications such as: chip detection, circuit board warpage detection, bottle/label description or pill/tube detection
