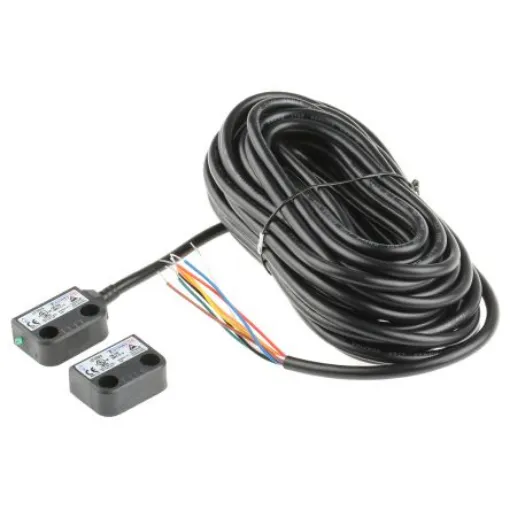

Omron F3S-TGR-N_C Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable - F3S-TGR-NMPC-21-10
Reliable non-contact safety switch with a 10m cable for enhanced operational safety.
Manufacturer part number: F3S-TGR-NMPC-21-10
GTIN: 4547648861366
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24V dc
Safety Contacts = NO/2NC
Housing Material = Plastic
Connection Type = 10m Cable
Actuator Type = Coded
Safety Category = 4
Actuator Included = Yes
Series = F3S-TGR-N_C
IP Rating = IP67
Number of Approach Directions = 2mm
Omron Non-Contact SwitchThe Omron F3S-TGR-N_C series non-contact switch has a switching distance of 12mm and 24VDC supply voltage. This is miniature sensors with 10m pre-wired cable connection. It has 2 normally closed contacts and 1 normally open contact. This switch is designed to interlock hinged, sliding or removable guard doors. Both plastic and stainless steel switches are available but the latter is ideally suited to high hygiene demands in the food industry. It has a long sensing range to avoid false signals resulting from an ill-aligned door. Note: Models F3S-TGR-N_C are coded. Actuator is included. For a suitable controller see the G9SA or G9SB from Omron or the NE1A DeviceNet system.Features and BenefitsContactless operation for no abrasion Excellent coverage of mechanical tolerances Can operate behind stainless steel fittings Screw hole coversCertificationsIP67 rated EN 954-1 EN ISO13849-1 EN 60204-1 EN/IEC 60947-5-3 UL 508 CSA C22.2 BS 5304 EN1088-1
