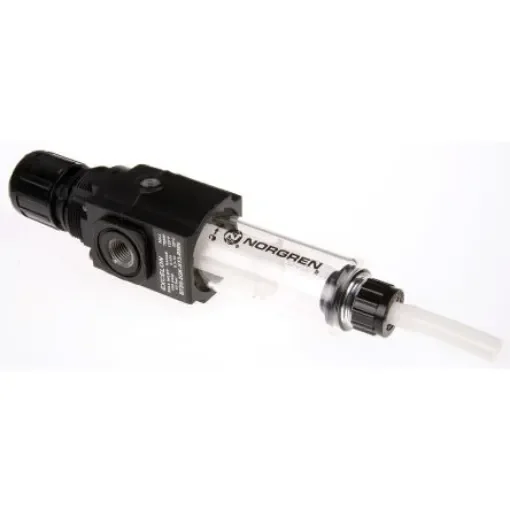

Norgren B72G Filter Regulator, 40µm, G 1/4, Semi Automatic, 10 bar - B72G-2GK-ST3-RMN

Port Connection = G 1/4
Maximum Operating Pressure = 10 bar
Manufacturer Series = B72G
Drain Type = Semi Automatic
Filtration Size = 40µm
Pressure Gauge Port = Rc 1/8
Pressure Gauge Port Thread Size = 1/8 in
Port Connection Thread Size = 1/4 in
Maximum Ambient Operating Temperature = +50°C
Minimum Operating Pressure = 0.3bar
Port Connection Thread Standard = G°C

IMI Norgren Pneumatic Filter/regulatorThe IMI Norgren 40µm pneumatic filter regulator has a G 1/4in port connection and a maximum operating pressure of 10bar. The regulator has a die-cast zinc housing, an ABS seal and a polyethylene filter insert. It is installed vertical with a single pressure supply and without a pressure gauge. Note: Typical flow data is accurate with 10bar inlet pressure, 6.3 bar set pressure and a 1bar drop. Maximum inlet pressure is 10bar.Features and BenefitsBalanced valve design minimizes the effect of variation in the inlet pressure on the outlet pressure Excelon design allows in-line or modular installation Full flow gauge ports Helps protect air-operated equipment from overpressure by retarding excessive pressure build-up High-efficiency oil and particle removal Highly visible, prismatic liquid level indicator lens on metal bowls Modular installations with Excelon 72, 73 and 74 series can be made to suit particular applications Optional electrical service indicator also available Optional service indicator turns from green to red when the filter element needs to be replaced Push to lock adjusting knob with tamper-resistant accessory Quick-release bayonet bowl Standard relieving models allow reduction of downstream pressure when the system is dead-ended Standard visual service life indicator turns from green to red when the filter element needs to be replaced
