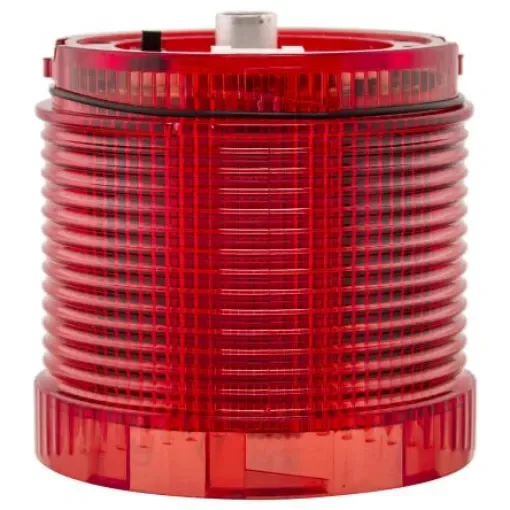

Moflash LED-TLM Series Red Steady Effect Beacon Unit, 24 V dc, LED Bulb, DC, IP65 - LED-TLM-02-02

Range = LED ECO
Series = LED-TLM
Component Type = Beacon
Current Type = DC
Light Effect = Steady
Lens Colour = Red
Lamp Included = Yes
Bulb Type = LED
Supply Voltage = 24 V dc
Minimum Decibel = 80dB
Maximum Decibel = 120dB
Height = 56mm
IP Rating = IP65mm
Minimum Temperature = -25°C

Moflash TLM Modular Signal Tower. The LED-TLM signal towers are ideally suited for status indication in light commercial ; industrial signalling applications where a local signal is required. They have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a slide switch on the PCB. The ECO LED-TLM signal towers have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades. The design is modular and is easily assembled. Colour modules are supplied with quick fix termination that simply pushes into the male terminal in the module below to make a connection. The range also comes with an audible module option that can be fitted anywhere in the modular stack. Features and Benefits. Beacon units are dual function, flashing or continuous (static) mode Sounder unit output: 80 - 120 dB Continuously rated LED long life Low current consumption Suitable for surface mounting 360° light output around the vertical axis Dustproof and weatherproof UV stable polycarbonate lens UV stable ABS plastic base 60 flashes per minute (FPM) IP54/65 protection RoHS compliant CE Marked
