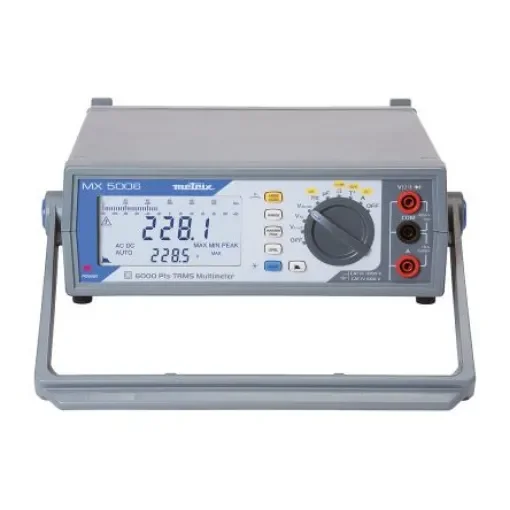

Metrix MX 5006 Bench Digital Multimeter, True RMS, 20A ac Max, 20A dc Max, 1000V ac Max - MX5006

IEC 61010, 1000 V CAT III. EU Mains power cable, 1.5 m red straight/straight cable, 1.5 m black straight/straight cable, red CAT IV 1 kV test probe, black CAT IV 1 kV test probe, operating manual on CD and start-up guide on paper. 3. MX5006 Bench Multimeter. The MX 5006 bench- top digital multimeter can be used for TRMS AC + DC measurements. The 6000 count double transflective backlit LCD screen with bargraph and central zero offers instantaneous display of the signal variations. To ensure good measurement stability on variable speed drives, the MX 5006 bench multimeter is equipped with a 300 Hz PWM filter. DC, AC and AC + DC current measurement DC, AC and AC + DC voltage measurement, as well as peak voltages Resistance up to 60 MO and continuity RMS values µV resolution Diode test Capacitance from 6 nF to 60 mF DC, AC and AC+DC voltage measurement, as well as peak voltages Frequency up to 60 kHz 60 mV calibre VDC accuracy: 0.05 % R Temperature (K thermocouple) from -200 °C to +1200 °C USB communication – SCPI commands
