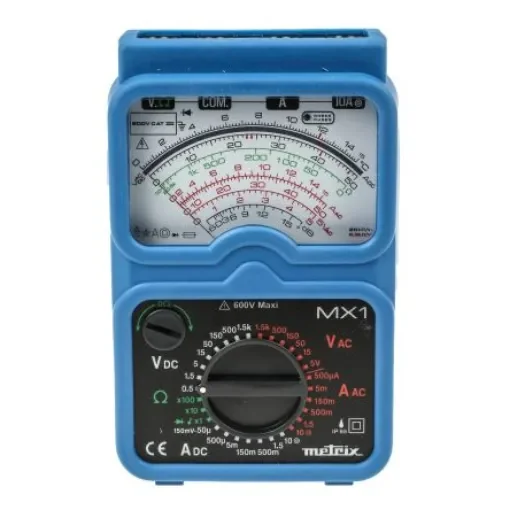

Metrix MX 1 Handheld Analogue Multimeter, 10A ac Max, 10A dc Max - MX1

Multimeter Type = Handheld
Model Number p = MX 1
Absolute Maximum DC Current Measurement = 10A dc
True RMS = No
Maximum Frequency = 1000Hz
Safety Category Level = CAT IIIV
Best AC Current Accuracy = ±2.5 %mm

class 2 IEC 61010-1, cat. III Pol-2. Multimeters - MX1 and MX2B. The MX1 and MX2B are genuinely double-insulated up to 1500 V in line with safety standards (case insulation voltage above 8 kV). SECUR'X locking prevents the test leads from being disconnected accidentally. If the leads remain connected, it is impossible to open the case (to change the battery or fuses). With protection of all ranges, the inputs support transients up to 6 kV. 37 functions and ranges: audible warning with rapid continuity, safety alarm, measurement up to 1500 V, diode test, measures 10 A DC with low voltage drop. The MX2B is supplied with an AC current test probe (AM12) without circuit opening, up to 200 A. Flexible, moulded, splash-proof case, with 80 mm linear scale. AA alkaline batteries (stock no.: ; 591-225 591-225 ) also available separately from the catalogue. Available in calibrated version.
