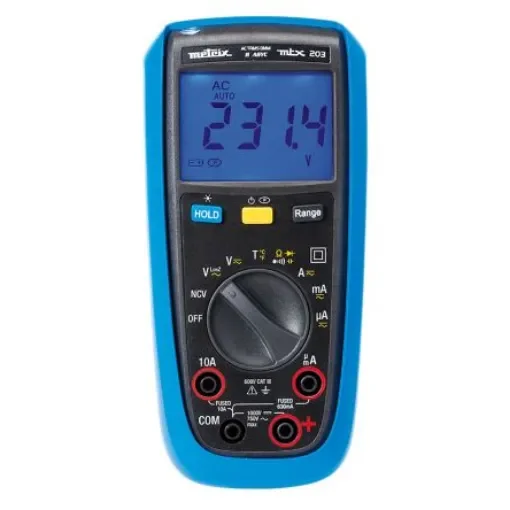

Metrix MTX203 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - MTX203-Z

IEC 61010-2-033 600 V CAT III. Shockproof sheath, 1.5 m straight lead / red CAT III 600 V test probe, 1.5 m straight lead / black CAT III 600 V test probe, flexible K thermocouple with 4 mm diameter adapter, operating manual, 1.5 V AA batteries (x2). 2. Metrix MTX203 True RMS Digital Multimeter, 6000 Counts. The Metrix MTX203 multimeter offers high performance combined with simplicity in use. Its compact, ergonomic casing is designed for one-hand use and easy stowing for applications in the field. The magnetised sheath enables hands-free use, even in electrical cabinets. The two-position stand ensures easy reading, however the multimeter is positioned. Clarity of readings is enhanced by the blue backlighting of the display. A built-in torch means the multimeter can be used in the dark. The rotary switch offers one function per position. On the front panel, three keys are all that are needed to access the various functions. The 600 V CAT III, IP54 double-well input terminals are easily accessible. Electrical maintenance operations are optimised by the VLowZ low-impedance voltage measurement function. In addition to traditional measurements, the MTX203 can measure temperature via a K thermocouple contact sensor delivered as standard. MTX203 applications range from electrical maintenance to initial troubleshooting on PCBs (measuring resistance, capacitance, diode) and verification of radiator control. Features and Benefits:. True RMS AC current and voltage measurements Display 6000 counts AC/DC voltage 0.6 V to 750 V AC/DC current 0.6 A to 1000 A Resistance 1 O to 60 MO Capacitance 1 nF to 100 mF Temperature with K thermocouple (°C / °F) from -55 °C to +1 200 °C All ranges programmed automatically for simpler use NCV (no-contact voltage) detection for safe working Backlit screen and built-in torch Ergonomic design Shockproof sheath with storage slots for leads Sheath magnetised for easy mounting on electrical cabinets Instrument dimensions 170 x 80 x 50 mm Weight 320 g. Added Benefits:. Ideal for diverse uses in multiple environments. Meets the needs of all self-employed electricians. Ideal for day to day use. Compact casing. Fits comfortably in one hand. Easy to pack into a toolbox. Handy for use in the field. Leads can be fixed in place at the back of the multimeter. Stand for hands free use. Fuse and batteries easy and quick to replace. What Is Included?. 1 Shockproof sheath. 1.5 m Lead with 4 mm elbowed plug / Red CAT III 600 V test probe. 1.5 m Lead with 4 mm elbowed plug / Black CAT III 600 V test probe. Flexible K thermocouple with 40mm adapter. 2 x 1.5 V AA batteries. 1 Operating paper manual
