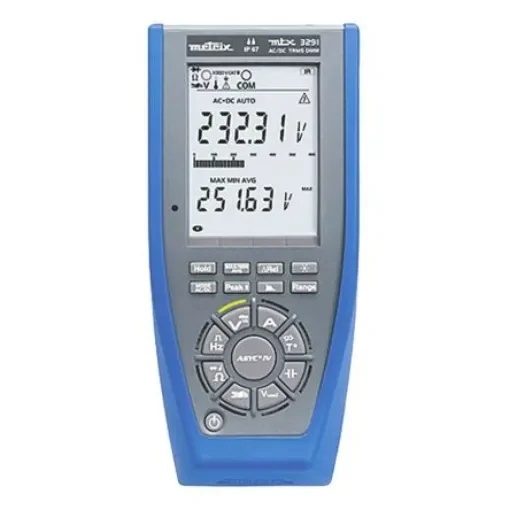

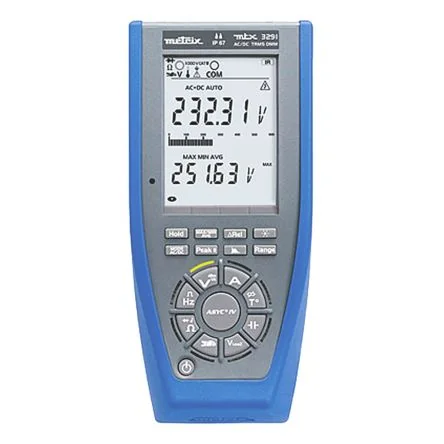

Metrix MTX 3291 Handheld Digital Multimeter, True RMS, 20A ac Max, 20A dc Max, 1000V ac Max - MTX3291
The Metrix MTX3291 is a reliable handheld multimeter with True RMS for accurate electrical measurements.
Manufacturer part number: MTX3291
GTIN: 3760171419069
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Multimeter Type = Handheld
Model Number p = MTX 3291
Absolute Maximum DC Current Measurement = 20A dc
Absolute Maximum Capacitance Measurement = 60mF
Connectivity = USB
Maximum Frequency = 600kHz
DC Current Measurement Resolution = 0.01µA dc
AC Voltage Measurement Resolution = 0.001mV ac
Safety Category Level = CAT III, CAT IVpF
Best AC Current Accuracy = 1.2% + 25 digitsmm
IEC 61010-1, Cat III 1000 V, Cat IV 600 V, EN61326-1. MTX3291 (ASYC IV) Digital Multimeter. MTX3291 digital display multimeters are training multimeters and are used in total safety within both electronics and electrical engineering. The MTX3291 provides direct measurement of the main electrical quantities they are compact, rugged leak proof and comfortable to hold. An easy to use multimeter providing you with surveillance of the main functions. A large LCD display, digital keyboard and lighting all in an IP67 casing. Features and Benefits:. Extra-large digital monochrome screen (70 x 52 mm) with bargraph and display of measurements simultaneously, with 60000 counts Intuitive digital keypad with lighting for active settings DC, AC and AC+DC voltage DC, AC and AC+DC current Frequency Resistance and continuity Diode test Capacitance Clamp function with V output and direct readings Temperature with Pt100 / 1000 Communication: IR / USB Protection: IP67. Added Benefits:. Contextual reminder of connection to the screen. Current auto-ranging, single terminal up to 10 A. Secondary measurements in addition to the main measurements to enable analysis. Surveillance of the MIN/MAX and AVG data with relative time/date stamping and of voltage and current peaks. SX-DMM software for real-time processing of the data on a PC. IP67 Protection against water projection and dust, excellent for outdoor environments. Power Supply:. 4 x standard AA batteries. OR. 4 Ni-MH batteries. Rechargeable with an HX0051B external module. 400 Hours operation time on batteries. What Is Included?. Multimeter. Cable 1.5 m long, straight/straight red. Cable 1.5 m long, straight/straight black. Red CAT IV 1 kV test probe. Black CAT IV 1 kV test probe. User guide on CD and paper start-up guide. USB Cable. Remote programming instructions. SX-DMM software. Bag
