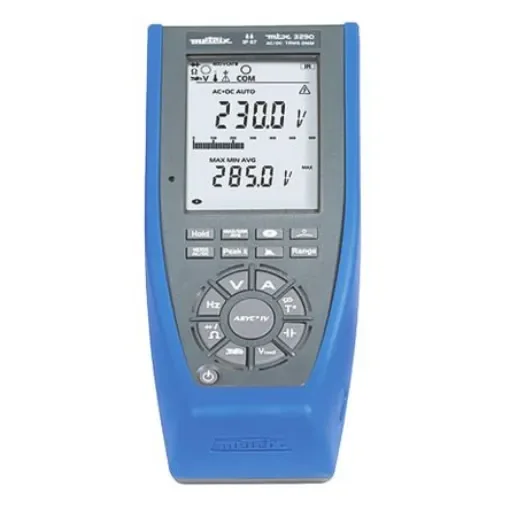

Metrix MTX 3290 Handheld Digital Multimeter, True RMS, 20A ac Max, 20A dc Max, 600V ac Max - MTX3290

IEC 61010-1, Cat III 600 V, Cat IV 300 V, EN61326-1. MTX3290 (ASYC IV) Digital Multimeter. MTX3290 digital display multimeters are training multimeters and are used in total safety within both electronics and electrical engineering. The MTX3290 provides direct measurement of the main electrical quantities they are compact, rugged leak proof and comfortable to hold. An easy to use multimeter providing you with surveillance of the main functions. A large LCD display, digital keyboard and lighting all in an IP67 casing. Features and Benefits:. Extra-large digital monochrome screen (70 x 52 mm) with bargraph and display of measurements simultaneously, with 6000 counts Intuitive digital keypad with lighting for active settings DC, AC and AC+DC voltage DC, AC and AC+DC current Frequency Resistance and continuity Diode test Capacitance Clamp function with V output and direct readings Temperature with Pt100 / 1000 Protection: IP67. Added Benefits:. Contextual reminder of connection to the screen. Current auto-ranging, single terminal up to 10 A. Secondary measurements in addition to the main measurements to enable analysis. Surveillance of the MIN/MAX and AVG data with relative time/date stamping and of voltage and current peaks. IP67 Protection against water projection and dust, excellent for outdoor environments. Power Supply:. 4 x standard AA batteries. OR. 4 Ni-MH batteries. Rechargeable with an HX0051B external module. 400 Hours operation time on batteries. What Is Included?. Multimeter. 4 x 1.5 V alkaline batteries. Cable 1.5 m long, straight/straight red. Cable 1.5 m long, straight/straight black. Red CAT IV 1 kV test probe. Black CAT IV 1 kV test probe. User guide on CD and paper start-up guide
