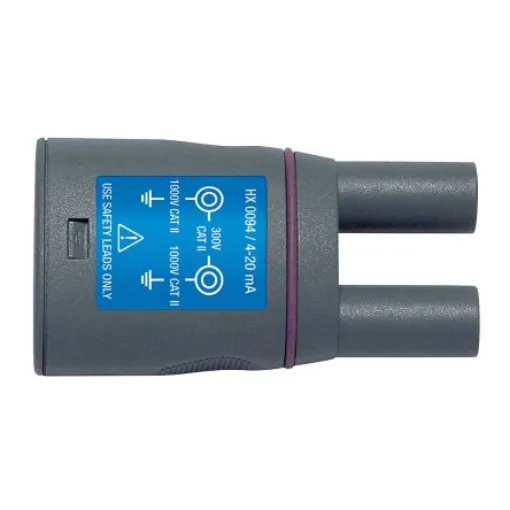

Metrix HX0094 AC for Use with SCOPIX Oscilloscopes
The Metrix HX0094 AC adapter allows accurate 4-20 mA current loop measurements for SCOPIX oscilloscopes.
Manufacturer part number:
HX0094
GTIN:
3760171417317
Only Ships to:
France, Monaco
For shipping outside these regions, please contact customer support.
Adapter Type = AC
For Use With = SCOPIX Oscilloscopes
Model Number p = HX0094
The Metrix HX0094 with banana connector can be used for 4-20 mA current loop measurement by means of a built-in shunt. It is ideal for applications in the automation and process sectors.Reference conditions Temperature: from 18° C to 28° C Relative humidity: from 20 % to 75 % Use conditions Altitude < 2000 m, indoors Operating temperature -10° C to +55° C DC measurement coefficient 25 mV / mA Impedance 250 O max
