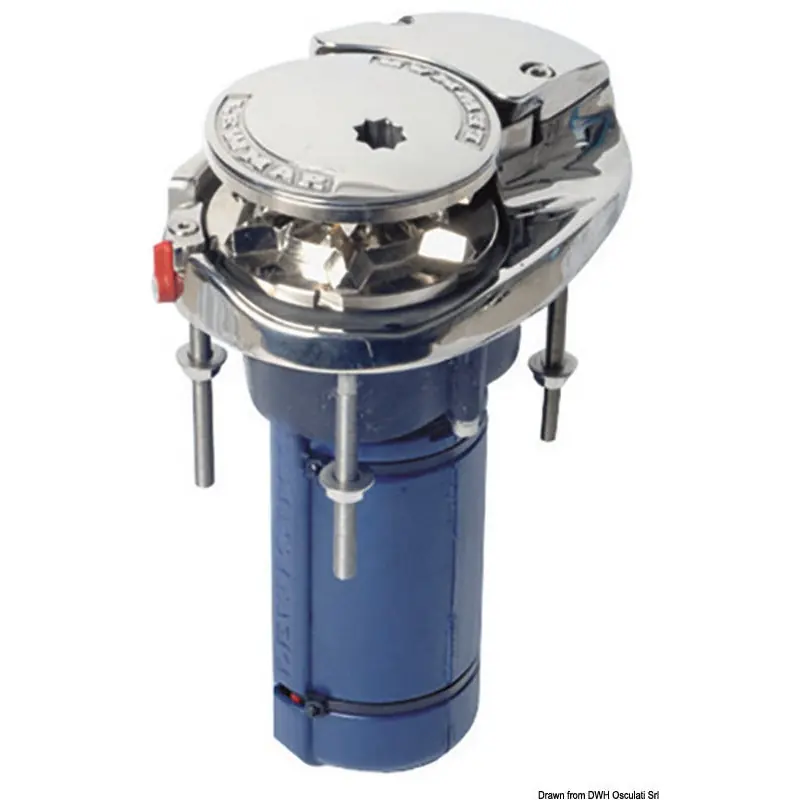

The Lewmar V700 Vertical Windlass is engineered for boats ranging from 6 to 9 meters (approximately 20 to 30 feet) in length. Constructed entirely from 316 stainless steel, it offers exceptional durability and resistance to marine corrosion. The windlass features a sleek, flush-mount design that conceals the motor below deck, maintaining the aesthetic integrity of the vessel. Its IP67 rating ensures waterproof protection up to one meter, safeguarding internal components from water ingress.
- Dual Chain Gypsy: Accommodates both 6mm and 7mm chains, including 1/4" G4 or BBB, and 7mm DIN 766, providing versatility for various anchoring needs.
- Fall Safe Anchor Lock: Integrated within the windlass body, this system prevents accidental deployment while underway, enhancing safety during anchoring operations.
- Fast Line Speed: Delivers a maximum line speed of 25 meters per minute (82 feet per minute) and a typical line speed of 15 meters per minute (50 feet per minute), facilitating efficient anchoring and retrieval.
- Manual Recovery: Equipped with a manual recovery option, allowing for anchor retrieval in the event of electrical failure.
- Impact-Resistant Motor Cover: Protects the motor from potential damage, ensuring longevity and reliable performance.
- Chain Counter Compatibility: Fitted with a reed switch magnet, enabling easy addition of an electronic chain counter (sensor not included), assisting in monitoring anchor rode deployment.
Technical Specifications:
- Motor Supply Voltage: 12V DC
- Motor Power: 320W
- Maximum Pull: 320 kg (700 lbs)
- Working Load Limit: 79 kg (175 lbs)
- Maximum Line Speed: 25 meters per minute (82 feet per minute)
- Typical Line Speed: 15 meters per minute (50 feet per minute)
- Normal Current Draw: 45A
- Recommended Circuit Breaker: 35A
- Weight: 6.5 kg (14 lbs)
- Dimensions: Above Deck: 128 mm (5 inches) in length, 196 mm (7 inches) in width, and 69 mm (3 inches) in height.
Materials:
- Deck Unit: 100% 316 stainless steel
- Motor Cover: Impact-resistant material
Compatibility Information:
- Boat Length: Suitable for vessels between 6 to 9 meters (20 to 30 feet)
- Chain Compatibility: Accepts 6mm and 7mm chains, including 1/4" G4 or BBB, and 7mm DIN 766
- Rope Compatibility: Compatible with 12mm (1/2") 3-strand and 8-plait ropes
Additional Information:
- Warranty: 5-year warranty, excluding motor and moving parts
- Included Components: Windlass unit, control button, circuit breaker, relay, release lever, mounting studs, template and seal, user manual
- Installation Requirements: Easy to install with no deck modification needed; only requires the use of a crown cutter
- Waterproof Rating: IP67, waterproof up to one meter
- Impact Resistance: Motor cover is impact-resistant
- Chain Counter Sensor: Ready to fit chain counter sensor (sensor not included)
