Lewmar SZ1 Aluminium Black Coated Openable Porthole - Optimal Ventilation and Style on Board
Are you looking for a high-quality, durable and stylish solution for ventilation and light entry on your boat or yacht? The Lewmar SZ1 Aluminium Black Coated Openable Porthole (Article Number 393129979) is exactly what you need. This porthole combines robust Lewmar quality with a modern black finish, optimized for a long lifespan in marine environments.

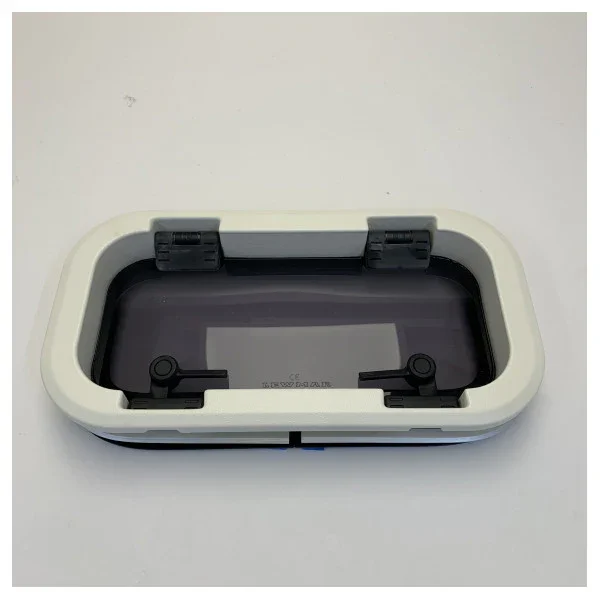

This model is a Size 1 rectangular porthole from the Lewmar Standard series. The design provides a large view and is very user-friendly. Thanks to the aluminium frame and sturdy construction, this product is CE approved for Category A, Area 2, 3 and 4 installations on deck, cabin roof, cockpit and transom. The black coating gives a luxurious and timeless appearance that perfectly matches modern vessels.
Features of the Lewmar SZ1 Porthole
- Material: High-quality anodized aluminium outer frame for excellent corrosion resistance.
- Finish: Stylish black coating.

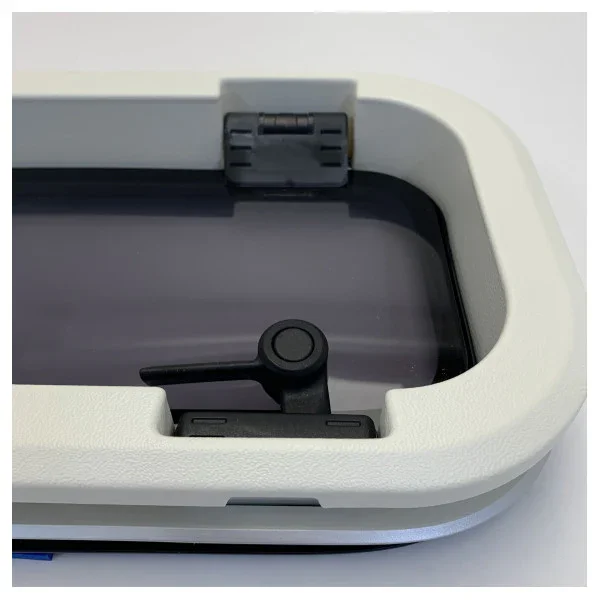

- Operation: Openable design with quick-action handles for easy ventilation control.
- Visor: Smoke grey acrylic glass for reduced glare.
- Installation: Easy mounting by clamping the hull or cabin wall between the inner and outer frame.
- Complete: Supplied including mosquito net (flyscreen) and white inner trim (White ABS Plastic Trim).
- CE Certification: CE approved for Deck, Cabin Roof, Cockpit and Transom installations (Design Category A / Area 2, 3 and 4).
- Versatile: Suitable for hull thicknesses or panel thicknesses of 7 mm to 34 mm.
Specifications in Detail (Size 1)
The Lewmar SZ1 Aluminium Black Coated Openable Porthole is characterized by the following dimensions and specifications:
- Model: Size 1 Openable
- External Dimensions (W x H): 367 mm x 191 mm
- Cutout Size (W x H): 347 mm x 171 mm
- Acrylic Thickness: 8 mm
- Panel Thickness / Hull Thickness Range: 7 mm - 34 mm
- Radius Cutout (R1): 52 mm
- Number of Handles: 2
- Glass Colour: Smoke grey
- Weight: Approximately 1.3 kg
Upgrade your boat with the Lewmar SZ1 porthole for superior light entry and ventilation, combined with a durable and elegant black look.
