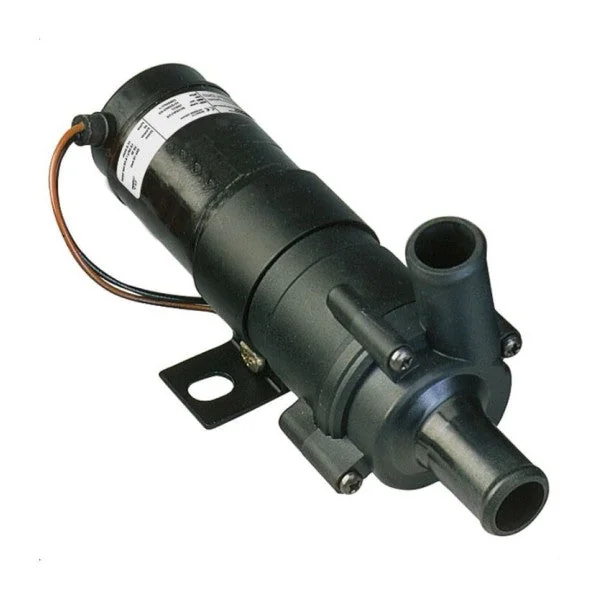

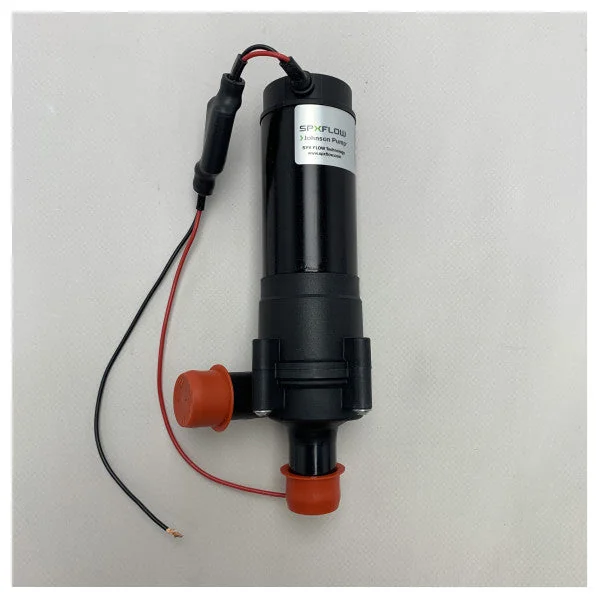

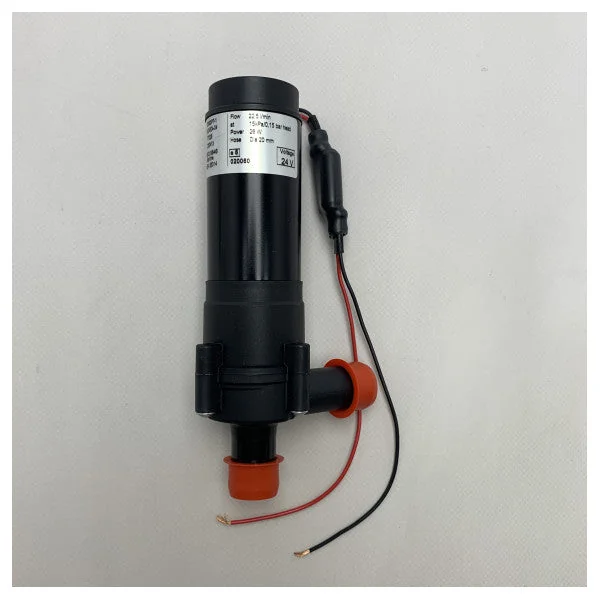

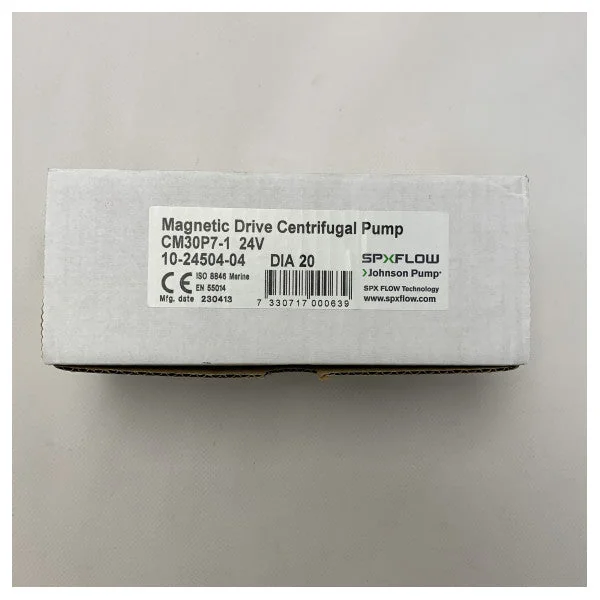

Johnson 10-24504-04 Black Circulation Pump 24V: Reliable Circulation for Various Applications
The Johnson 10-24504-04 Black Circulation Pump 24V is a powerful and durable pump, ideal for circulating water or water/glycol mixtures in various systems, such as heating, cooling, and even intercoolers. With its compact design, high performance, and leak-proof construction, this pump is an excellent choice for automotive, marine, and recreational applications.
Key Features:
- Powerful Performance: Delivers an impressive flow of 26 litres per minute at 0.1 bar, ensuring efficient circulation in your system.
- Leak-Proof Design: The magnet-driven, seal-less construction ensures leak-free operation, keeping your system clean and safe.
- Durable Construction: The water and dust-resistant (IP67) motor and permanently lubricated, ball-bearing brush motor provide long life and reliability, even under harsh conditions.
- Versatile Applications: Suitable for use with both fresh water and water/glycol mixtures (up to 60% glycol), making it ideal for various applications, including heating, cooling, and intercoolers.

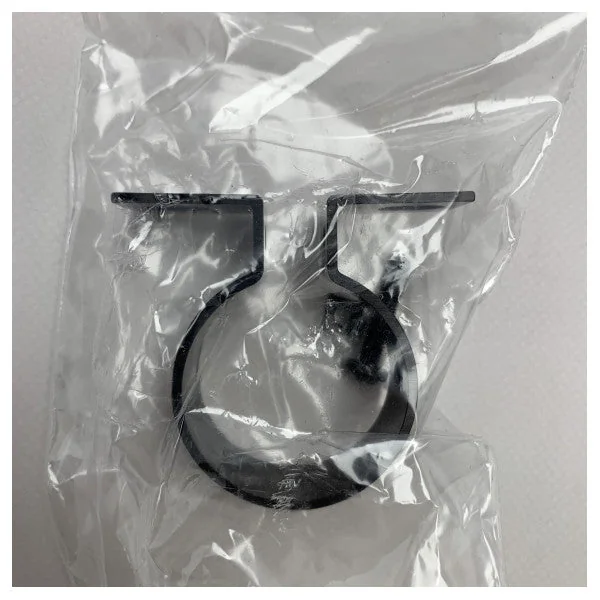

- Easy Installation: Comes with a universal mounting for flat surfaces and is compatible with hoses with an inner diameter of 20 mm (3/4"), making installation quick and straightforward.
Specifications:

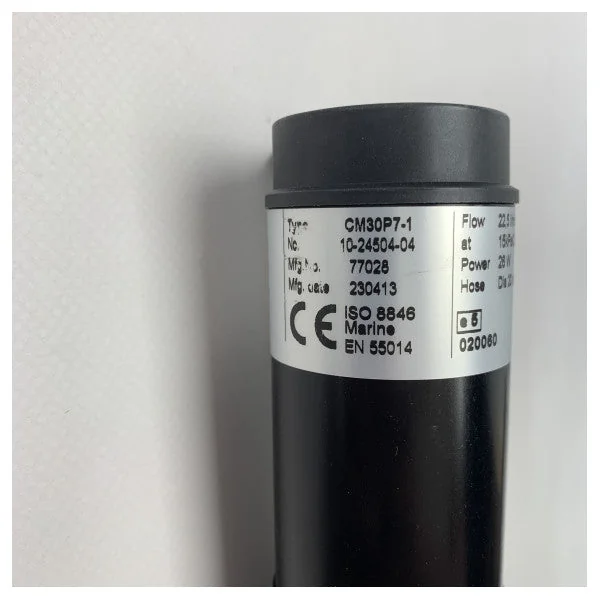

- Model: Johnson 10-24504-04
- Colour: Black

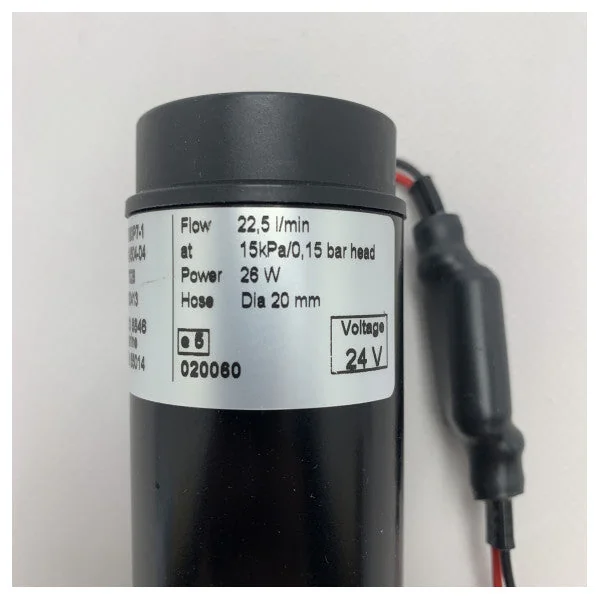

- Voltage: 24V DC
- Current: 1.1A
- Fuse: 1.6A
- Maximum Flow: 26 l/min at 0.1 bar
- Maximum Pressure: 2.5 bar
- Liquid Temperature Range: -40°C to +100°C
- Ambient Temperature: -40°C to +70°C
- Connection: Ø20 mm (3/4") hose inner diameter

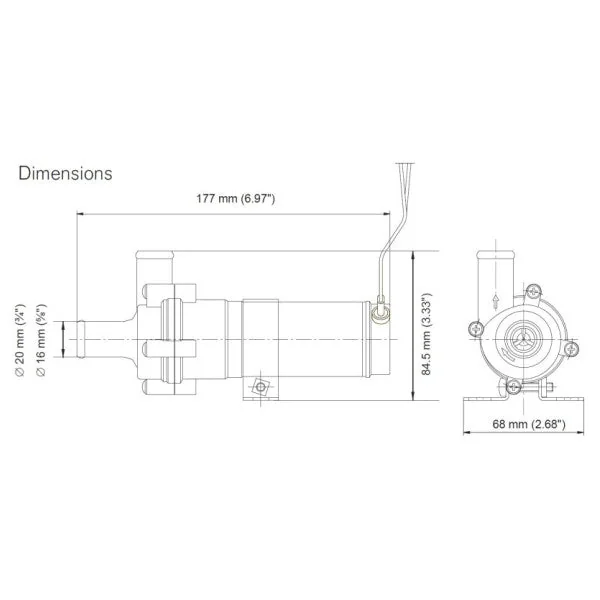

- Dimensions: 8.5 cm (H) x 6.8 cm (W) x 17.7 cm (L)
- Weight: 0.60 kg
- IP Protection Class: IP67
Invest in the Johnson 10-24504-04 Black Circulation Pump 24V for reliable and efficient circulation in your system. Order today and experience the difference!
Note: This pump is not self-priming and requires a flooded suction.
