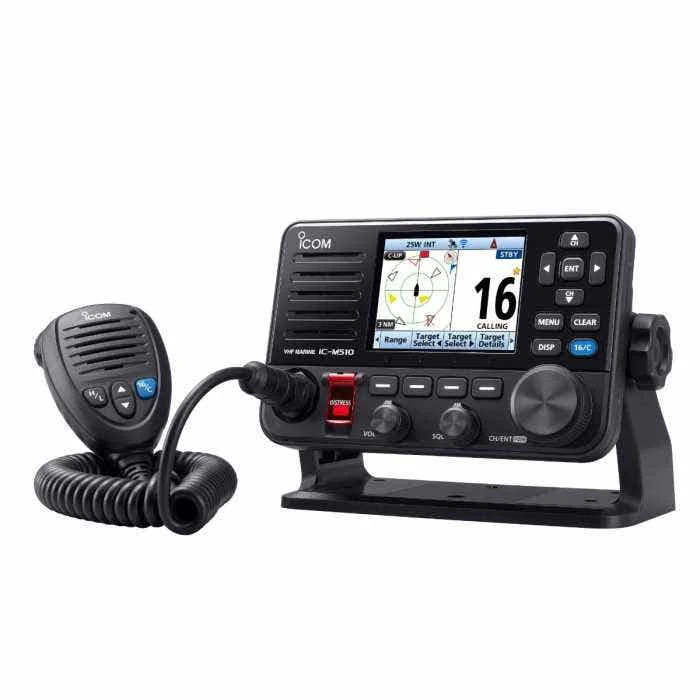

The Icom IC-M510E EVO is a state-of-the-art VHF marine transceiver designed to provide exceptional performance and reliability for maritime communication. This multifunctional device offers a range of advanced features to enhance safety and convenience on the water.
- Integrated GNSS Receiver with Antenna: Ensures precise geolocation, allowing users to determine up to 100 waypoints directly on the VHF without the need for a separate sounder.
- Class D DSC Functionality: Equipped with Digital Selective Calling, including a dedicated "Distress" button for emergency situations, enabling digital transmission of distress information to the Coast Guard and other vessels.
- NMEA 2000™ Connectivity: Allows seamless integration with other marine equipment, such as Multi-Function Displays (MFDs), facilitating data sharing like GNSS position, AIS information, DSC calls, and radio channel data.
- Wide-Angle TFT LCD Colour Display: Features a 3.4-inch high-resolution screen with nearly a 180-degree viewing angle, ensuring clear visibility even in bright sunlight. The night mode enhances readability in low-light conditions.
- Remote Control via Wi-Fi: Utilizes the RS-M500 app (available for iOS and Android) to remotely control the VHF through WLAN. Up to three smart devices can function as wireless microphones or remote controllers, allowing operation from anywhere on board.
- Active Noise Cancelling Technology: Digitally removes background noise from both transmit and receive audio, providing clear communication in noisy maritime environments.
- Two-Way Hailer/RX Hailer Function: When connected to the optional SP-37 speaker horn, enables communication with crew on deck or shore via the radio's microphone and the horn speaker. The RX hailer function allows monitoring of radio traffic on deck or tower through the hailer speaker.
- Integrated AIS Receiver: Displays real-time AIS vessel traffic information on the screen, with the ability to make individual DSC calls to selected AIS targets.
- Simplified Navigation Function: Guides users to specified waypoints or AIS targets, with the capability to assign up to 100 destinations as waypoints, such as favorite fishing spots or starting positions for yacht races.
- Sleek Design: Awarded the iF DESIGN AWARD 2022, the IC-M510E EVO features a stylish design suitable for panel or trunnion mounting, complementing modern boat interiors.
Technical Specifications:
- Frequency Range:
- Transmit: 156.025 ~ 161.425 MHz
- Receive: 156.050 ~ 162.000 MHz
- DSC: 156.525 MHz
- AIS1, 2: 161.975, 162.025 MHz
- Power Output: 25 W (High), 1 W (Low)
- Current Drain:
- Transmit (25 W output): 5.0 A
- Receive (Max. audio): 1.6 A
- Receive (with HM-195): 2.0 A
- Receive (with external speaker): 4.0 A
- Receive (with external speaker, RX hailer, and HM-195): 7.3 A
- Operating Temperature Range: –20°C ~ +60°C
- Antenna Impedance: 50 Ω
- Dimensions (W x H x D): 175 x 110 x 53 mm
- Weight: Approximately 750 g (excluding microphone)
Materials:
The IC-M510E EVO is constructed with high-quality materials to ensure durability and reliability in marine environments. The device features an IP68 waterproof rating, providing dust-tight and waterproof protection, capable of withstanding immersion in water up to 1 meter for 60 minutes.
Compatibility Information:
- Optional Accessories:
- SP-37 Horn Speaker: Enhances the two-way hailer/RX hailer function.
- HM-195 CommandMic™: Allows remote control and intercom functionality.
- UX-241 GNSS Antenna: Provides an external GPS antenna option.
- UT-112A Voice Scrambler Unit: Adds voice scrambling capability for secure communication.
- CT-M500 Wireless Interface Box: Enables NMEA 2000™ connectivity and two-way hailer/PA function.
