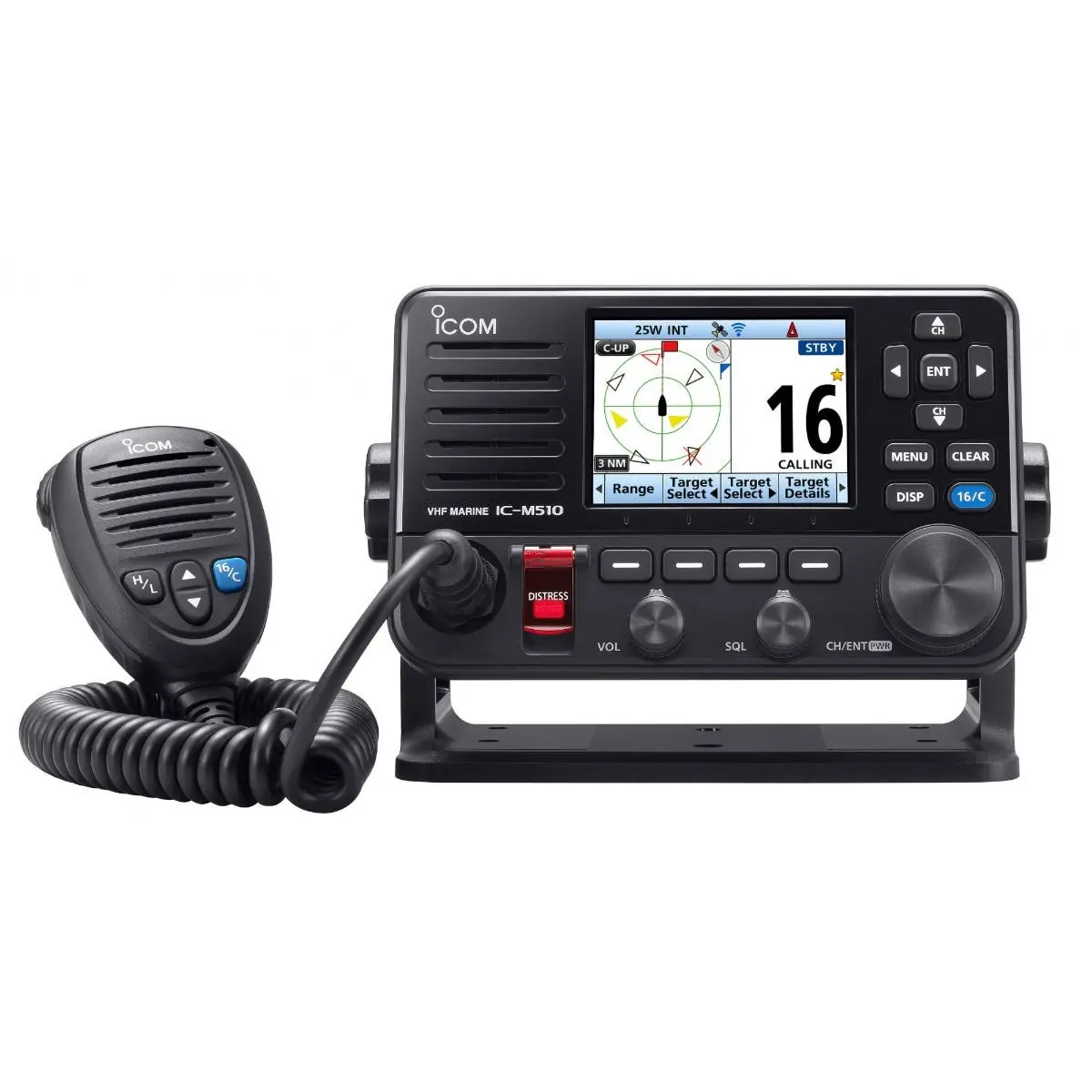

The Icom IC-M510E EVO is a multifunctional VHF marine transceiver designed to enhance maritime communication and safety. It features an integrated AIS receiver, built-in GNSS receiver, and advanced connectivity options, making it a versatile choice for various marine applications.
- Integrated AIS Receiver: Displays real-time AIS vessel traffic information on the screen, allowing direct DSC calls to selected AIS targets.
- Built-in GNSS Receiver: Provides precise positioning and navigation capabilities, with the option to use an external GNSS antenna for enhanced accuracy.
- Class D DSC Functionality: Enables digital selective calling, including distress alerts, enhancing safety at sea.
- NMEA 2000™ Connectivity: Allows integration with other marine equipment, facilitating data sharing such as GPS position, AIS information, DSC calls, and radio channel data.
- Smart Device Control: Utilizes the RS-M500 app (for iOS™/Android™) to remotely control the transceiver via WLAN, with support for up to three smart devices.
- Wide Viewing Angle Colour TFT LCD: Offers nearly a 180-degree viewing angle with high-resolution characters and function icons; includes a night mode for low-light conditions.
- Active Noise Cancelling: Reduces background noise for clear communication in noisy maritime environments.
- Two-Way Hailer/PA Function: When connected to the optional SP-37 speaker horn, enables communication with crew on deck or shore and the ability to sound foghorn patterns.
- IP68 Waterproof Rating: Ensures durability with protection against dust and immersion in water up to 1 meter for 60 minutes.
Technical Specifications:
- Frequency Range: Transmit: 156.025 ~ 161.425 MHz, Receive: 156.050 ~ 162.000 MHz, DSC: 156.525 MHz, AIS1, 2: 161.975, 162.025 MHz
- Usable Channels: INT, USA, ATIS channels
- Power Supply Requirement: 12.0 V DC (10.8 V ~ 15.6 V DC)
- Current Drain: Transmit (25 W output): 5.0 A, Receive (Max. audio): 1.6 A
- Operating Temperature Range: –20°C ~ +60°C
- Antenna Impedance: 50 Ω
- Dimensions (W x H x D): 175 x 110 x 53 mm
- Weight: Approximately 750 g (excluding microphone)
Materials: The device is constructed with durable materials suitable for marine environments, ensuring longevity and reliability.
Compatibility Information:
- Optional Accessories: SP-37 Speaker Horn, HM-195 CommandMic™, UX-241 GNSS Antenna, MA-510TR Class B AIS Transponder, CT-M500 Wireless Interface Box
- Smart Device Compatibility: Compatible with iOS™ and Android™ devices using the RS-M500 app.
