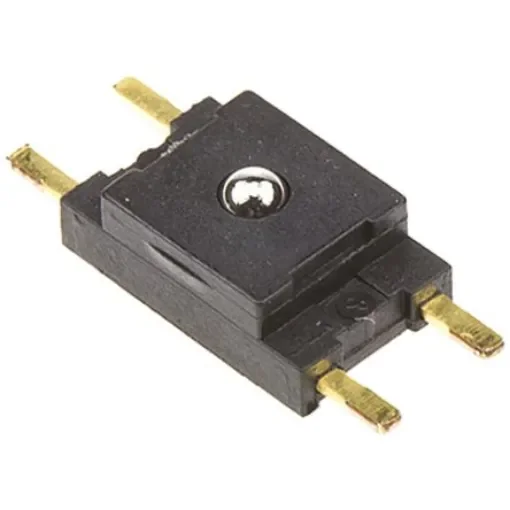

Honeywell FS Series Low Profile Strain Gauge, Compression, Tension Measure, 6kO - FSS1500NSB

Force Measured = Compression, Tension
Series = FSkO
Sensor Type = Low Profile
Maximum DC Voltage = 12V
Length = 0.36mm
Width = 0.22mm
Depth = 0.148mm
Minimum Operating Temperature = -40°C
Maximum Current = 1.6 mA°C
Dimensions = 0.36 x 0.22 x 0.148 mm

Low Profile Force Sensor. The FSS Series Sensors provide precise, reliable force sensing performance in a compact commercial grade package. Operating force 0 to 1500 grams Overforce 4500 grams Input/output resistance 4-6kO High ESD resistance 8kV Surface mount Electrically ratiometric output Typical applications: Medical infusion pumps, occlusion detection, kidney dialysis machines Operating temperature range -40 to 85°C
