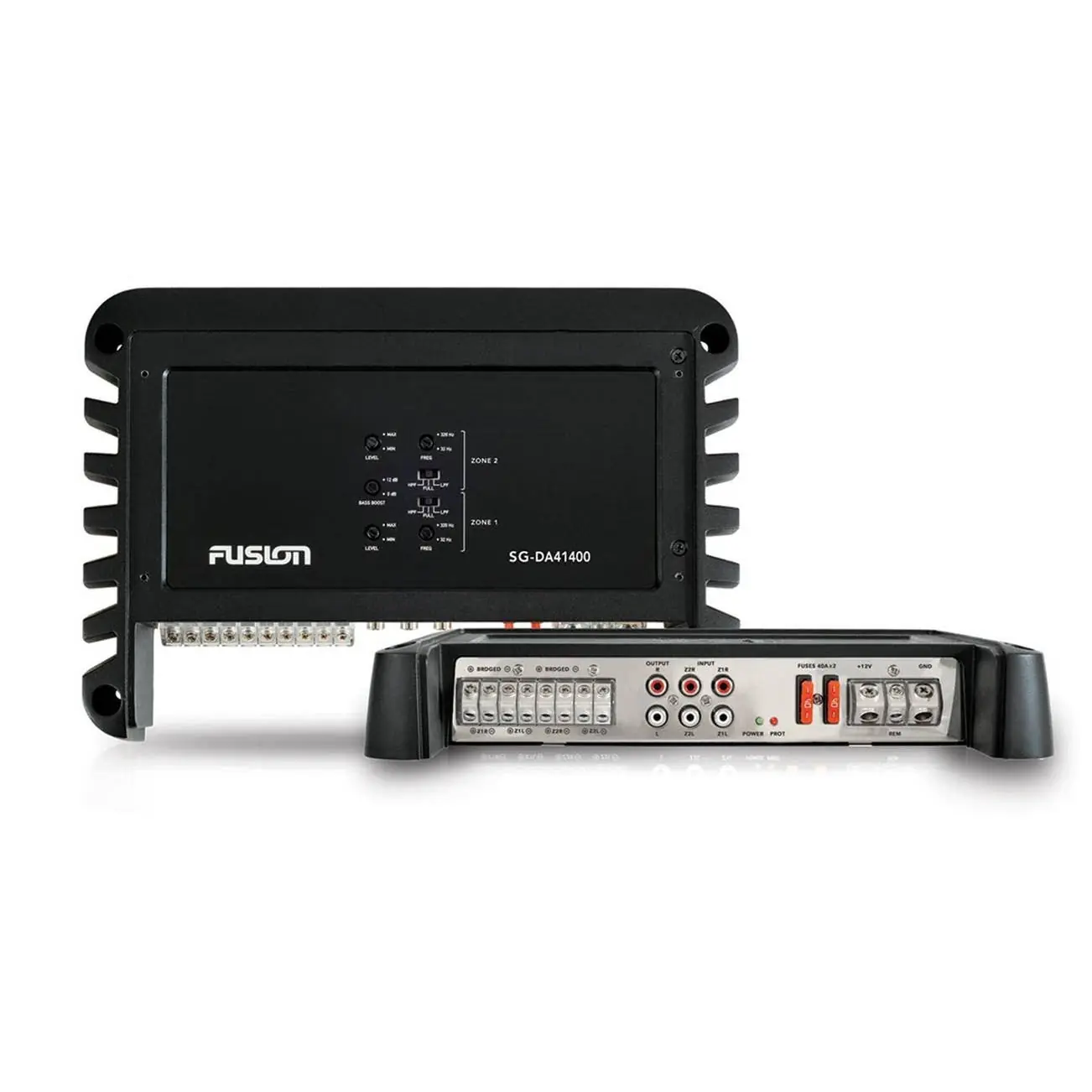

The Fusion Signature Series 4-Channel Marine Amplifier is engineered to deliver exceptional audio performance in the marine environment. Designed with advanced features and robust construction, it ensures a superior listening experience on the water.
- Class-D Amplifier Technology: Utilizes efficient Class-D design, providing high output with low battery consumption, ideal for marine applications.
- High Power Output: Delivers peak power of 1400 watts, capable of powering up to four speakers or two speakers and a subwoofer.
- Marine-Ready Construction: Features conformal-coated circuit boards and a rigid aluminum alloy heat sink chassis, offering enhanced durability and heat dissipation.
- Stainless Steel Control Panel: The polished stainless-steel control panel cover conceals and protects all cable connections and adjustment controls, providing an attractive finish.
- Flexible Configuration: Supports various speaker configurations, including 2-ohm per channel or 4-ohm bridged, allowing customization to meet specific audio needs.
- True-Marine Design: Built to withstand the harsh marine environment, backed by a 3-year limited consumer warranty.
Technical Specifications:
- Amplifier Class: Class-D
- Frequency Response: 10Hz - 65kHz
- Peak Power: 1400 Watts
- Rated Power:
- 150 Watts RMS x 4 at 4 Ohms
- 220 Watts RMS x 4 at 2 Ohms
- 440 Watts RMS x 2 at 4 Ohms Bridged
- Inputs: Two pairs of RCA line-level inputs for easy connection to new or existing systems.
- Outputs: Four speaker channels plus a subwoofer output, depending on the version chosen.
- Protection Circuitry: Includes thermal, reversed power polarity, DC offset, over-voltage, and under-voltage protection.
- Cooling: Rigid aluminum alloy heat sink chassis for efficient heat dissipation.
Materials:
- Chassis: Rigid aluminum alloy heat sink for enhanced durability and heat management.
- Control Panel Cover: Polished stainless steel for corrosion resistance and aesthetic appeal.
- Circuit Boards: Conformal-coated to protect against moisture and environmental factors.
Dimensions:
- Height: 5.0 cm (2 inches)
- Width: 30.0 cm (11-13/16 inches)
- Depth: 21.0 cm (8-1/4 inches)
Compatibility Information: Compatible with Fusion Signature Series speakers and subwoofers. Supports 2-ohm per channel or 4-ohm bridged speaker configurations.
