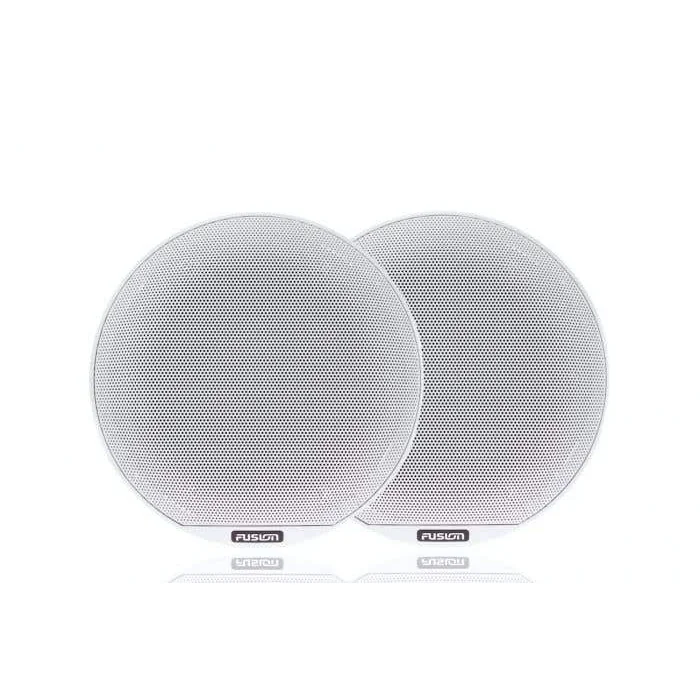

The Fusion Signature Series 3i Classic Marine Speakers are engineered to deliver exceptional audio performance in the harshest marine environments. Incorporating advanced materials and innovative acoustic technologies, these speakers provide a premium listening experience on the water.
- CURV Cone Technology: Utilizes a heat-pressed woven fiber composite cone, resulting in a lighter and stronger design that enhances sound definition and efficiency while offering superior resistance to marine conditions.
- Silk Dome Tweeter: Equipped with a treated silk dome tweeter for clear and accurate high-frequency reproduction.
- Sealed Crossover Components: Features fully sealed crossover components to protect against the marine environment, ensuring durability and consistent performance.
- Water Resistance Rating IP65: Achieves an IP65 rating, indicating protection against dust and water ingress, making it suitable for various marine conditions.
- Compass-Safe Distance: Maintains a minimum distance of 310 cm (122 inches) from a compass to prevent interference.
Technical Specifications
| Specification | 6.5" Speaker | 7.7" Speaker | 8.8" Speaker |
|---|
| Peak Power Handling | 230 Watts | 280 Watts | 330 Watts |
| RMS Power Handling | 75 Watts | 100 Watts | 130 Watts |
| Frequency Response | 70 Hz–22 kHz | 60 Hz–22 kHz | 50 Hz–20 kHz |
| Sensitivity (1W @ 1m) | 90 dB | 91 dB | 91 dB |
| Nominal Impedance | 4 Ohms | 4 Ohms | 4 Ohms |
| Mounting Diameter Clearance | 136 mm | 156 mm | 188 mm |
| Mounting Depth Clearance | 79 mm | 86 mm | 106 mm |
| Voice Coil Diameter | 1.2" | 1.4" | 1.5" |
| Recommended Amplifier Power | 30–90 W/ch | 25–120 W/ch | 25–140 W/ch |
| Weight per Speaker | 1.35 kg | 1.80 kg | 2.62 kg |
Materials
- Cone Material: CURV woven fiber composite with rubber surround.
- Tweeter Material: Silk dome.
Dimensions
- 6.5" Speaker: 200 mm (diameter) x 103 mm (depth)
- 7.7" Speaker: 220 mm (diameter) x 109.5 mm (depth)
- 8.8" Speaker: 247 mm (diameter) x 131 mm (depth)
Compatibility Information
Designed to integrate seamlessly with Fusion stereo systems and amplifiers, ensuring optimal performance and ease of installation.
