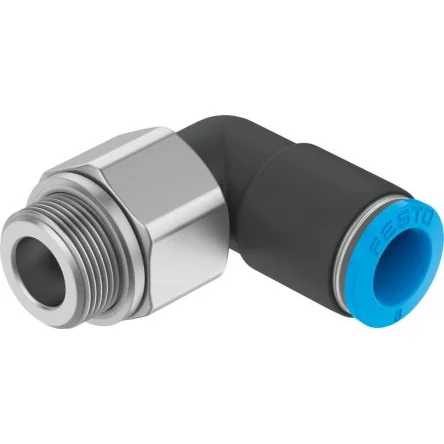

Festo QSRL PBT Pneumatic Rotary Union, G 1/8 Male, Push In 4mm - QSRL-G1/8-4
Reliable Festo pneumatic rotary union with G 1/8 male thread for efficient fluid transfer.
Manufacturer part number: QSRL-G1/8-4
GTIN: 4052568040772
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Tube Connection = Push In 4mm
Tube Connection - Tube Size = 4mm
Threaded Connection = G 1/8 Male
Threaded Connection - Thread Size = 1/8in
Manufacturer Series = QSRL
Material = PBT
Finish = Nickel Plated
Maximum Operating Pressure = 14 bar
Maximum Rotational Speed = 500rpm
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +60°C
Threaded Connection - Thread Standard = G
Threaded Connection - Gender = Male
Tube Connection - Type = Push In
The Festo push-in L-fitting, rotatable QSRL-G1/8-4 360° rotatable, with ball bearing and male thread with external hexagon.Size Standard, Nominal size 1,9 mm, Type of seal on screw-in stud Sealing ring, Assembly position Any, Container size 1
